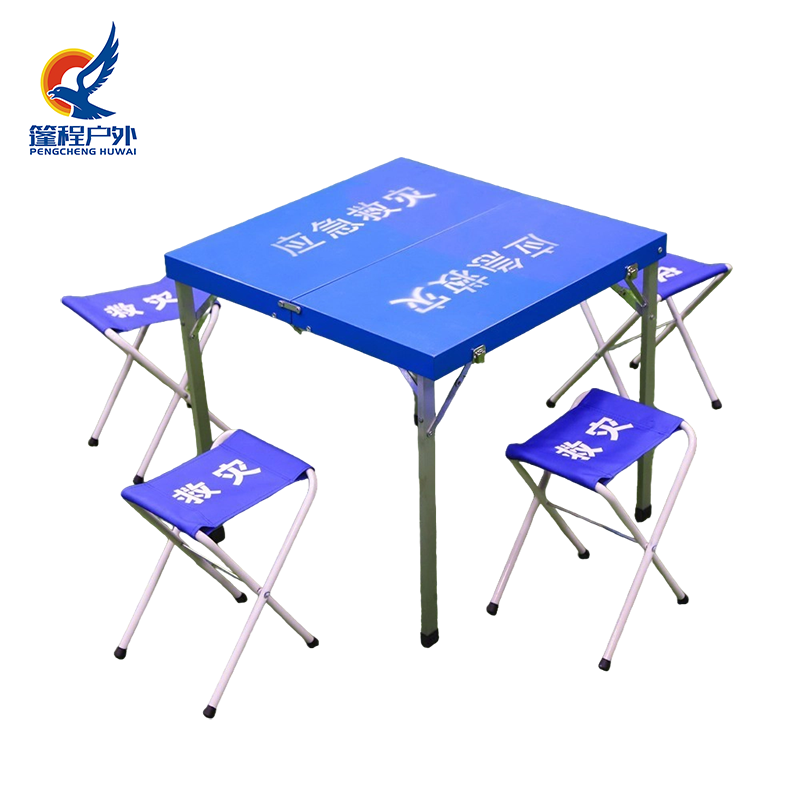

Emergency Relief Table and Chair Set

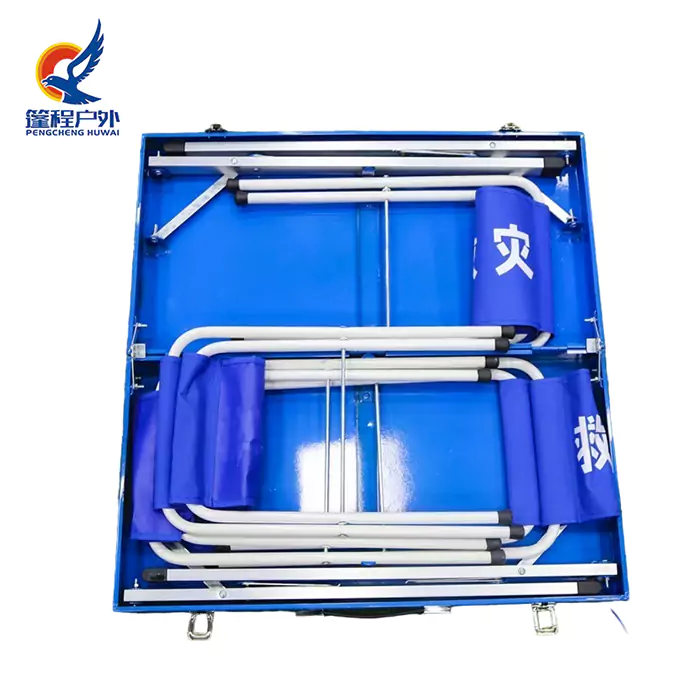

Pengcheng Outdoor’s dedicated Emergency Relief Table and Chair Set consists of one table and four stools. Both the disaster relief folding table and chairs are foldable. Classified by tabletop materials, there are two types: metal folding tables and plastic folding tables. The tabletop of the metal folding table is assembled from two symmetrical components stamped from cold-rolled steel sheets, forming an integrated openable and closable structure. The table legs are connected to the tabletop using aluminum alloy square tubes, with hinges enabling the legs to fold. The seat surface of the folding stools is made of PVC-coated fabric, and the legs are formed by bending welded steel pipes. When folded, the four stools can be stored inside the table, which then closes up to form an integrated hand-carry case.

Product Parameters (Specifications)

The parameters of Pengcheng Outdoor’s dedicated Emergency Relief Table and Chair Set are as follows:

1. Product Composition

1 set includes 1 folding table + 4 folding stools

2. Folding Table Parameters

Tabletop Material: Cold-rolled steel sheet / engineering plastic (optional)

Unfolded Dimensions: 1200×600×750mm (L×W×H)

Folded Dimensions: 600×400×120mm

Tabletop Thickness: 1.2mm steel sheet / 15mm plastic sheet

Table Leg Material: 25×25×1.2mm aluminum alloy square tube

Connection Method: Stainless steel hinges

Load-bearing Capacity: ≥80kg

3. Folding Stool Parameters

Seat Surface Material: 600D PVC-coated Oxford cloth

Stool Leg Material: Φ19×1.0mm welded steel pipe

Unfolded Dimensions: 300×250×450mm

Single Stool Load-bearing Capacity: ≥100kg

Seat Surface Treatment: Waterproof and mildew-proof coating

4. Overall Features

Storage Method: 4 stools fully stored inside the table

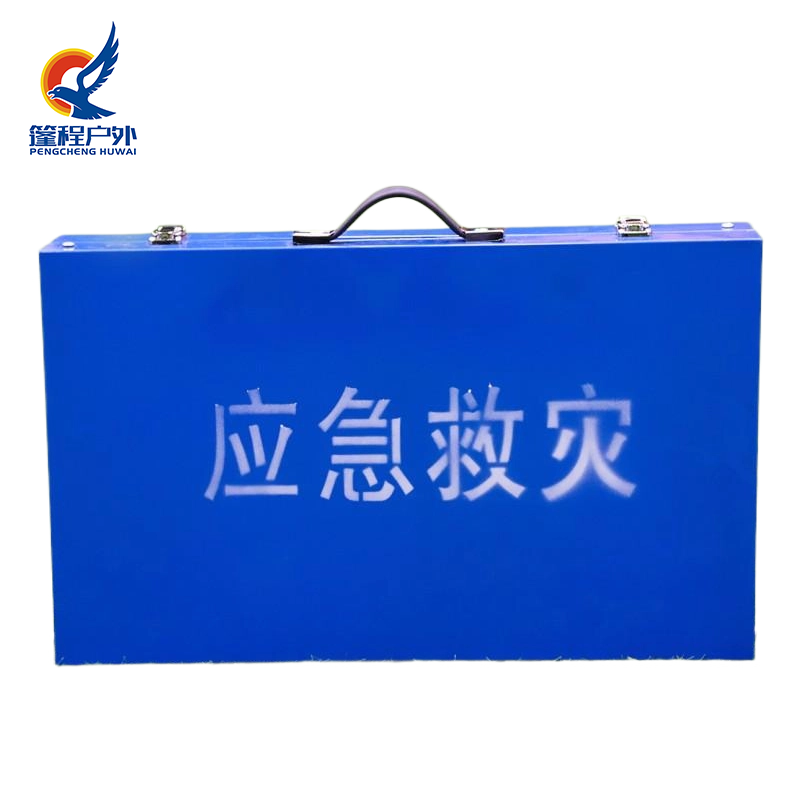

Packaging: Integrated hand-carry case design

Total Weight: 12.5kg (metal version) / 9.8kg (plastic version)Unfolding Time: ＜2 minutesCertification Standards: Compliant with relevant CE/GB standards

Through modular design and standardized production, the product achieves rapid deployment and convenient storage, meeting the immediate usage needs in emergency scenarios.

Product Features & Applications

This emergency table and chair set is suitable for scenarios such as disaster relief command, temporary office work, and outdoor operations. With an innovative design concept and reliable Made-in-China quality, it provides practical solutions for various emergency support needs.

Production Details

As a professional Chinese manufacturer, Pengcheng Outdoor implements standardized production processes in its own factories in China to ensure the quality control and product consistency of the emergency relief table and chair set.

1. Production Process of Metal Folding Tables

Tabletop Manufacturing: Cold-rolled steel sheets are cut by CNC laser cutting machines, then stamped into symmetrical components in one pass using a 200-ton hydraulic press. The stamping die precision reaches ±0.1mm, and the edges are processed with a curling technology to ensure safety.

Surface Treatment: Tabletop components undergo nine pre-treatment procedures before entering the automatic powder coating line. Epoxy-polyester powder is cured in a 200℃ oven to form an 80μm-thick protective coating.

Table Leg Processing: Legs are precisely bent by CNC pipe bending machines, and the connection parts are milled by a five-axis machining center to ensure fitting precision. The folding mechanism adopts a combination of 304 stainless steel mandrels and nylon bearings.

2. Production Process of Plastic Folding Tables

Injection Molding: Engineering plastic pellets are melted at 280℃ and injected into precision molds, then held under pressure and cooled to form the main tabletop body. The mold temperature control system ensures product dimensional stability.

Structural Reinforcement: The interior of the tabletop is designed with a mesh-shaped reinforcing rib structure, and metal embedded parts are installed at key load-bearing positions, which are fused with the plastic body through ultrasonic welding.

3. Production Process of Folding Stools

Stool Frame Manufacturing: Welded steel pipes are straightened and then sent to a fully automatic pipe bending production line, with bending angles monitored in real time by photoelectric sensors. Welding points adopt CO₂ shielded welding technology, with welding strength reaching over 95% of the base metal.

Seat Surface Processing: 600D Oxford cloth is precisely cut by computer-controlled cutting machines, sewn with industrial-grade double-needle sewing machines at a stitch density of 8 stitches per centimeter. The PVC coating is compounded with the fabric under 180℃ hot-pressing conditions.

Through a vertically integrated production system, Pengcheng Outdoor optimizes costs while ensuring product quality standards, providing customers with cost-effective Made-in-China products and supporting quick delivery for bulk orders.
