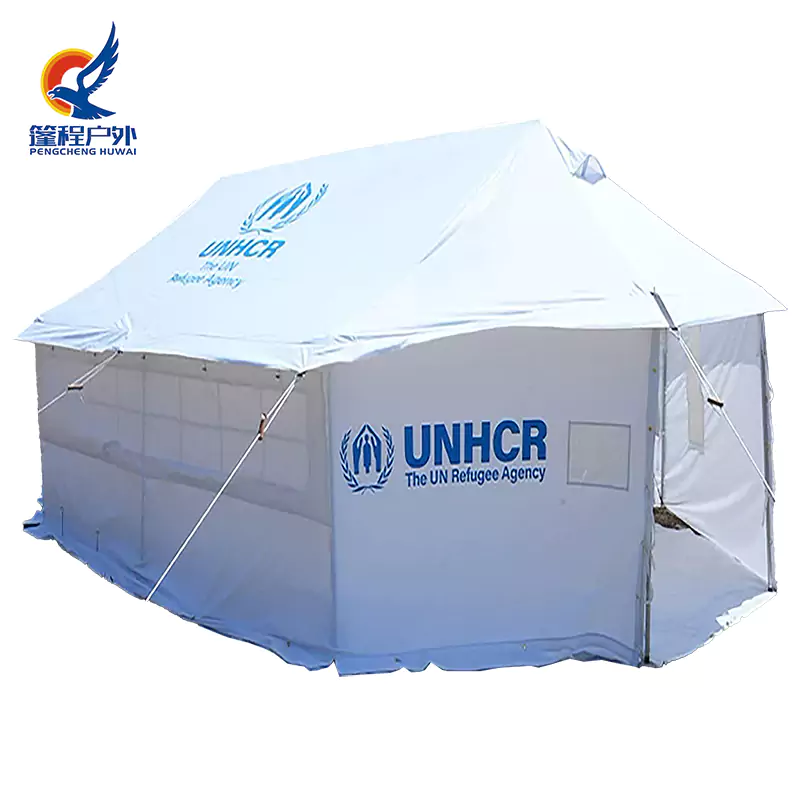

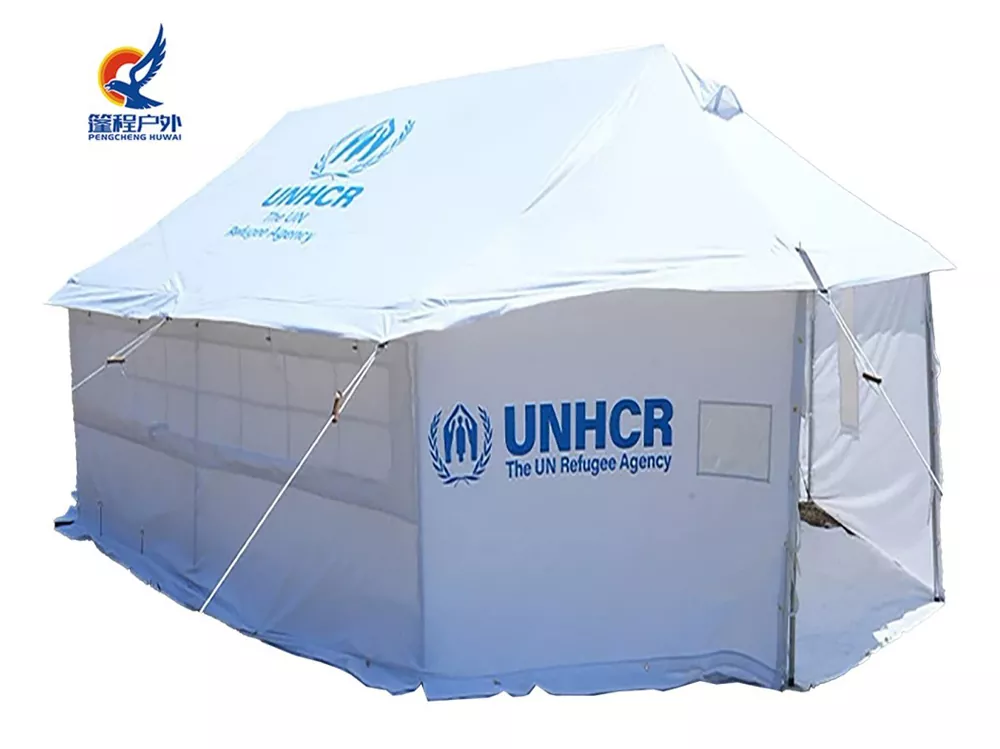

Typically suitable for families of 3-5 people, the International Emergency Refugee Tent offers an usable area of approximately 26 square meters, with an operating temperature range of -5℃ to 40℃. The outer tent is made of waterproof, flame-retardant, and UV-resistant materials; some models are equipped with insulation kits, modular frames, and quick repair tools, supporting assembly in 0.5 hours. Beyond physical shelter, the tent also addresses needs for privacy, medical care, and education, serving as the "cornerstone of mobile communities" in crises.
Outer tent dimensions: Approximately 6.5m × 4.0m
Usable area: 26㎡
Center height: 2.2m
Capacity: Suitable for families of 3-5 people
Outer tent: Polyester-cotton blend or HDPE-laminated fabric, featuring triple protection (waterproof, flame-retardant, UV-resistant)
Groundsheet: Thickened polyethylene material, preventing ground moisture and insect intrusion
Waterproof rating: ≥3000mm for both outer tent and groundsheet
Wind resistance: Capable of withstanding 75km/h strong winds (family-sized model)
Quick assembly: Complete setup in approximately 0.5 hours
Modular frame: Large tents adopt spring shock-absorbing guy ropes and multi-anchor fixation
Humanized design: Vertical walls enhance space utilization; reflective guy ropes ensure nighttime safety
Pengcheng Outdoor’s International Emergency Refugee Tent builds a triple protection system (waterproof, flame-retardant, UV-resistant) with polyester-cotton blend/HDPE-laminated outer tents and thickened polyethylene groundsheets. After disasters such as typhoons and earthquakes, the tent can quickly provide shelter for displaced persons. Details like reflective guy ropes and wire sleeves ensure nighttime safety, while expandable partition designs allow the tent to be transformed into medical stations, classrooms, or community centers during medium-term resettlement, improving hygiene and epidemic prevention coverage. When crises last more than a year, its reinforced structure can be upgraded to a "Refugee Housing Unit (RHU)". From flood control to thermal insulation in extremely cold regions, the tent serves as a "mobile home" safeguarding lives with its strong adaptability.
As a Chinese manufacturer with its own factories in China, Pengcheng Outdoor ensures each tent complies with UNHCR technical specifications.
Main frame: High-strength galvanized steel pipes, undergoing three pre-treatment processes to lay the foundation for subsequent processing.
Tent fabric: Polyester Oxford cloth with double-sided PVC coating, passing UV aging resistance tests and waterproof tests.
Frame processing: Steel pipes are precisely bent on fully automatic CNC pipe bending machines, with angle tolerance controlled within ±0.5°.
Tent fabric production: Computerized cutting machines perform automatic cutting based on 3D expansion drawings, achieving a cutting accuracy of ±2mm.
Key processes: All seams undergo high-frequency heat-sealing welding, with welding temperature precisely controlled at 380±10℃, forming a continuous 15mm-wide sealing strip. Doors and windows adopt double-layer adhesive pressing technology to ensure complete waterproofing.
Standardized packaging system: Custom EPE buffer materials and waterproof packaging boxes are used to ensure safety during long-distance transportation.
Global emergency response network: Bulk production can be initiated within 48 hours.
Through continuous technological innovation and strict process control, Pengcheng Outdoor provides international standard-compliant and reliable Chinese-manufactured tent products for refugee aid organizations, establishing a trustworthy supplier reputation in the humanitarian aid field.
