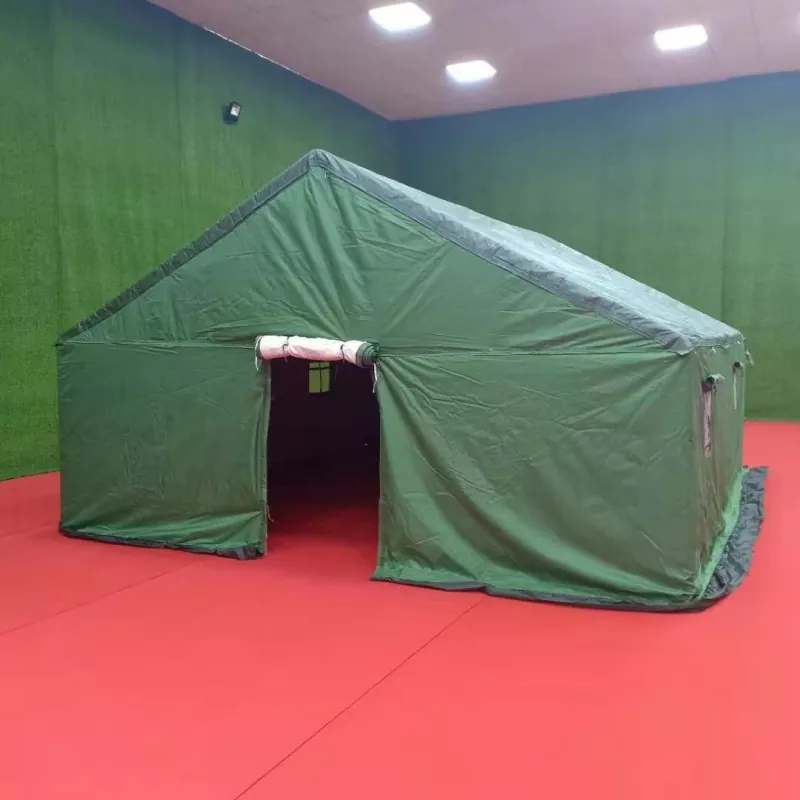

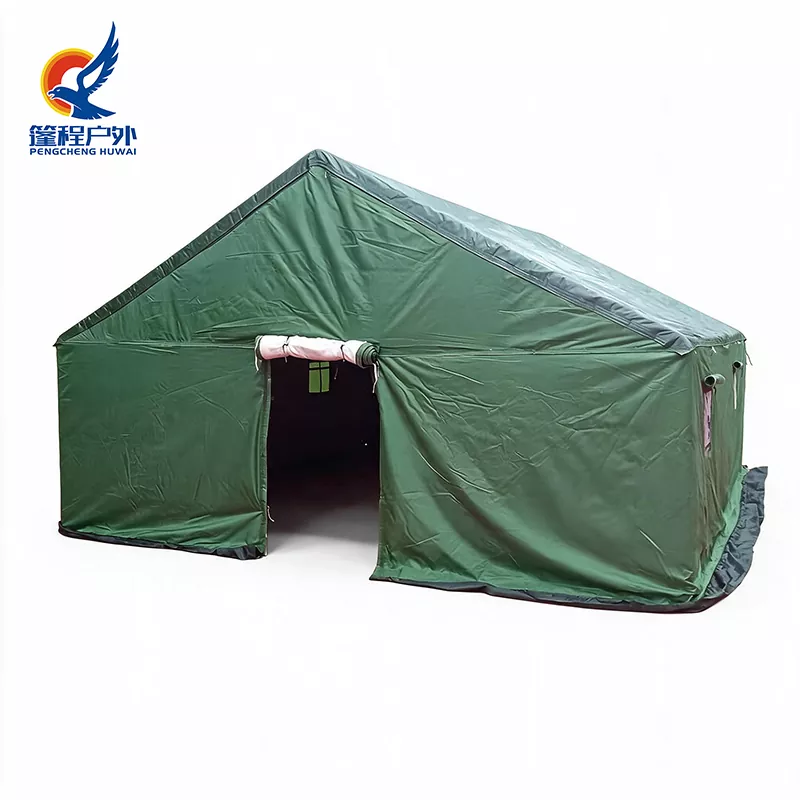

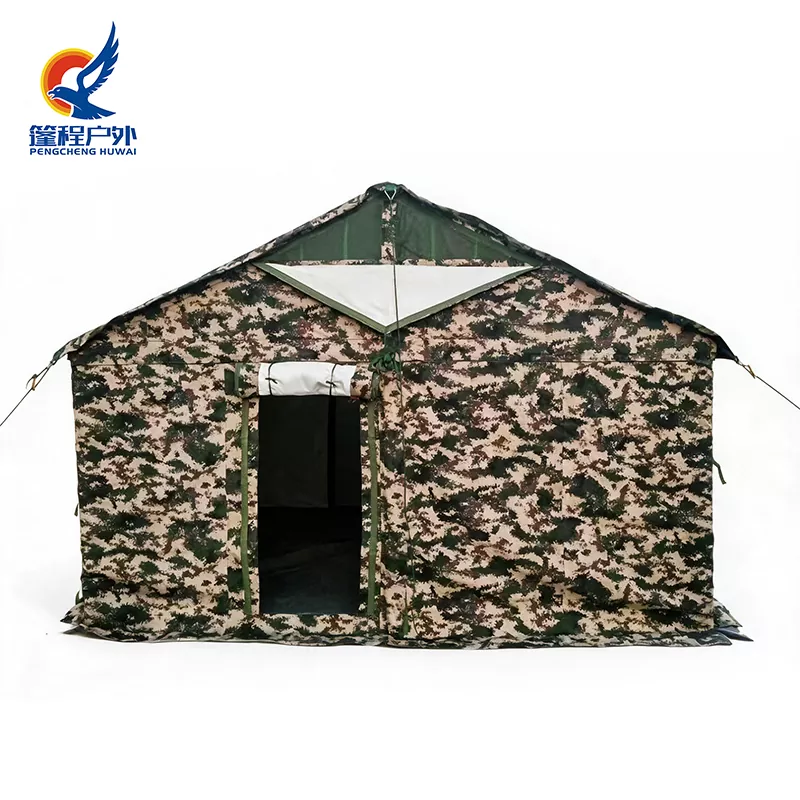

The Model 84A cold-weather cotton tent features a three-layer composite structure—comprising an outer fly, an insulating cotton interlayer, and an inner liner—offering excellent sealing and thermal insulation. It is a standardized accommodation tent widely used in low-temperature outdoor environments. Designed with an integrated steel frame and a sloped roof, the tent boasts a structurally sound design with high wind and snow resistance, making it suitable for long-term outdoor deployment. Its components are highly standardized and interchangeable, allowing for simple setup, rapid dismantling, and compact storage—ideal for both overland transport and containerized shipping.
The tent features built-in bunk bed structures, maximizing space efficiency and eliminating the need for separate bed frames; this enables rapid occupancy and significantly reduces the cost of supporting infrastructure for field operations. Highly versatile, the product meets a wide range of needs, including long-term outdoor operations, temporary housing, and field camp setups.
Tangshan Pengcheng Outdoor Products Co., Ltd. is a manufacturer based in Tangshan, Hebei. We handle all production processes and quality inspections in-house—eliminating middlemen to ensure quality control, transparent pricing, and reliable delivery schedules. With large-scale production capacity, we can fulfill orders ranging from small-batch samples to massive overseas container shipments, while also offering customization to meet procurement requirements across different countries and climates.
|
Model |
84A Cotton Tent |
|
External Dimensions |
3.9 m × 3.7 m, ridge height 2.6 m, eave height 1.7 m |
|
Floor Area |
14.43 m² |
|
Capacity |
12 persons (standard with double-deck beds: 6 upper, 6 lower) |
|
Tent Structure |
Double-pitched frame, three-layer structure (outer tent + insulation cotton layer + inner tent) |
|
Packaging |
Split into multiple packages, suitable for containerized sea freight |
|
Standard Color |
Army green; custom colors available |
The Model 84A cotton tent utilizes industrial-grade outdoor materials known for superior weather resistance and durability, capable of withstanding harsh conditions such as prolonged sun exposure, rain, snow, and low temperatures.
Outer Fly Fabric: Thickened waterproof polyester canvas; high-density weave with a water-repellent surface finish; tear-resistant, abrasion-resistant, and age-resistant; effectively blocks rain, frost, and snow penetration.

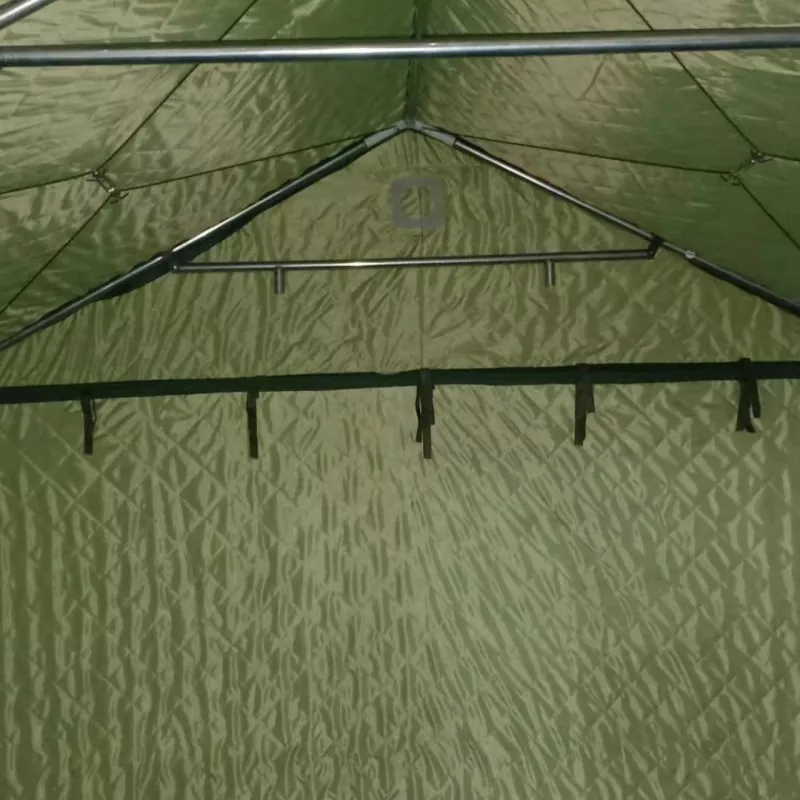

Insulation Interlayer: High-density needle-punched insulating cotton; fully filled for excellent thermal retention; effectively traps heat in low-temperature environments, significantly enhancing comfort for winter outdoor living.
Inner Liner Fabric: Premium polyester Oxford cloth; smooth, soft texture with good breathability; effectively minimizes internal condensation and frost buildup.

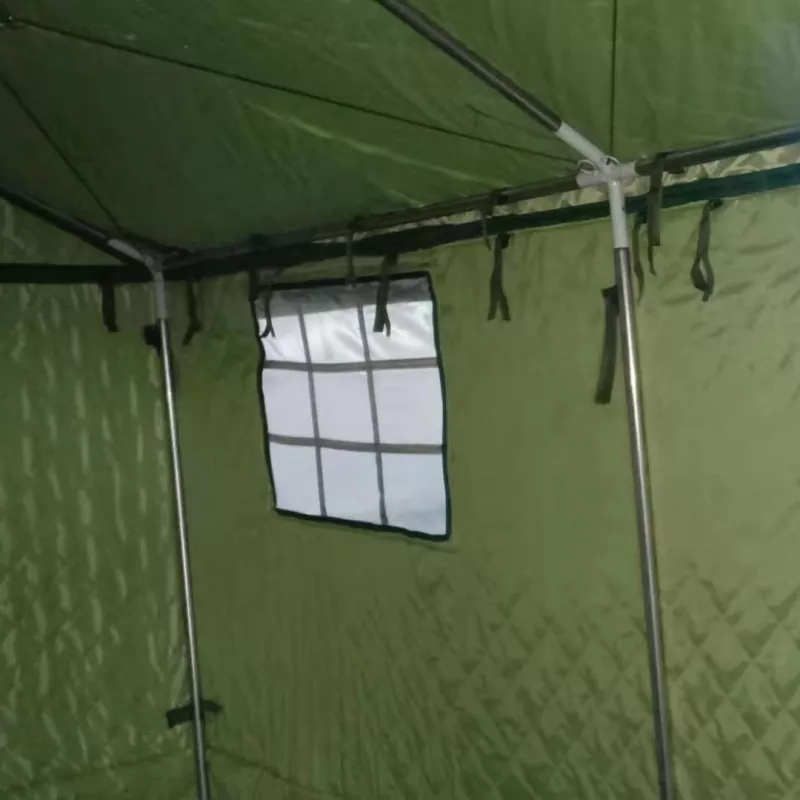

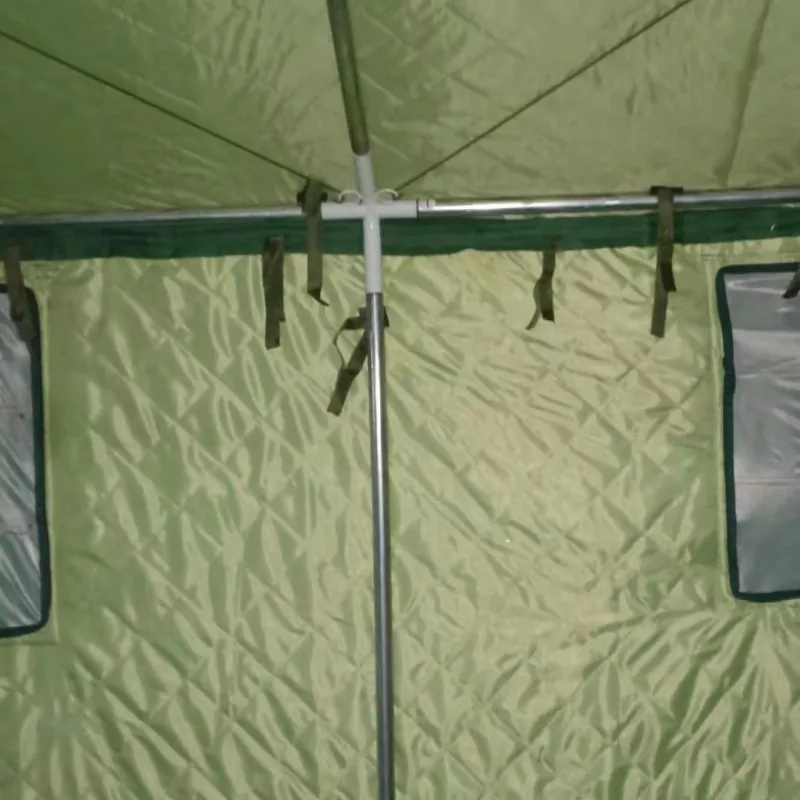

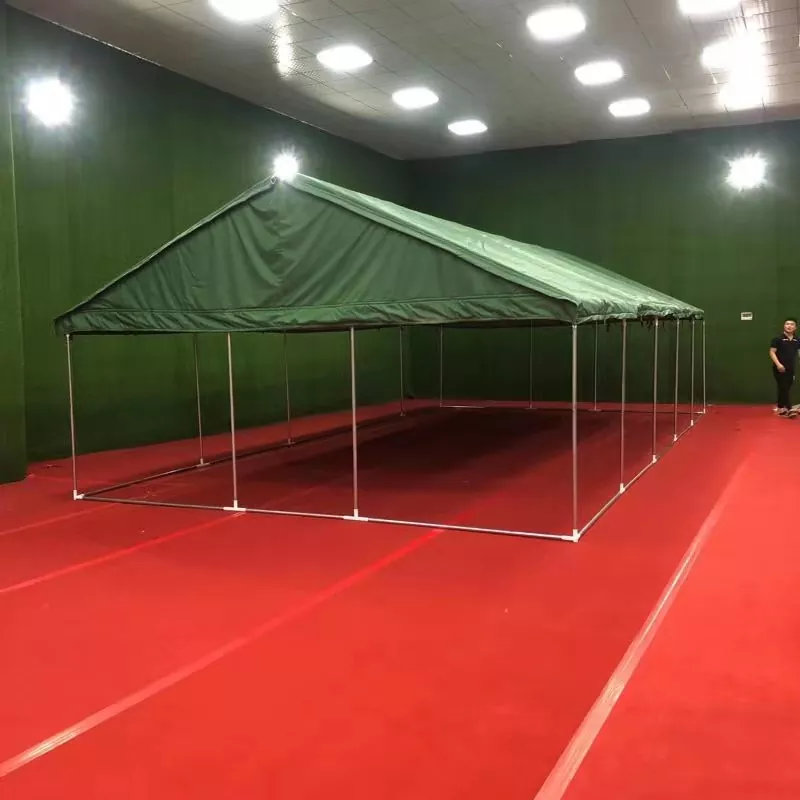

Frame Structure: Thickened welded steel tubing; high load-bearing capacity; finished with an electrostatic spray coating for rust and corrosion resistance; durable against deformation and rust, ensuring stability through repeated assembly and disassembly. Complete Accessory Set: Includes standard wind ropes, high-strength ground stakes, doors and windows with mesh screens, sealed zippers, and all other necessary installation hardware—ready for immediate use upon arrival.
Note: Fabric weight, insulation layer thickness, frame wall thickness, and material grades can be customized and upgraded to meet specific project requirements.
Features a three-layer composite structure with a thickened insulation layer. With excellent sealing performance optimized for low-temperature, frosty, and frigid environments, it meets thermal needs for field accommodation in cold regions and is suitable for long-term use in autumn, winter, and high-altitude areas.
Upgraded overall waterproofing technology with leak-proof seam treatments ensures resilience against moderate to heavy rain. It effectively blocks external moisture, keeping the interior dry and providing a comfortable living experience.
Combines a structural slope design with a reinforced steel frame for even load distribution and high stability. It withstands strong winds and supports moderate snow loads, making it ideal for long-term outdoor encampments.
Tear-resistant and abrasion-resistant fabrics paired with rust-proof, corrosion-resistant framing ensure a robust structure. Designed for repeated assembly, disassembly, and relocation, the tent offers a long service life and lower overall procurement costs.

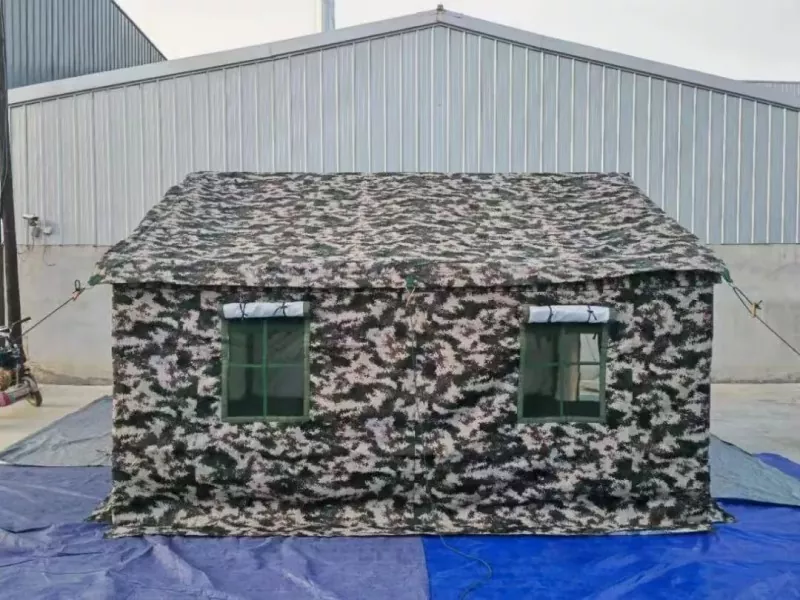

Equipped with multiple adjustable mesh-screened windows to ensure excellent airflow and natural light while effectively keeping out insects and debris, creating a more comfortable living environment.
Primarily intended for outdoor exercises, temporary encampments, outdoor accommodation, emergency command operations, medical relief, and similar applications.
1. Dimensions: Length 3.9 m, width 3.7 m, sidewall height 1.7 m, peak height 2.6 m; usable floor area 14.43 m². Packaged total weight: 197.5 kg; volume: 0.574 m³.

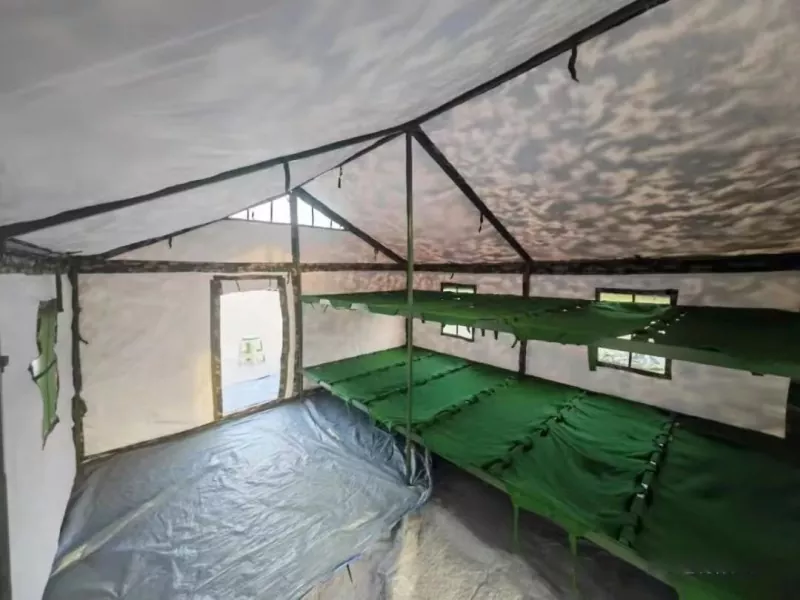

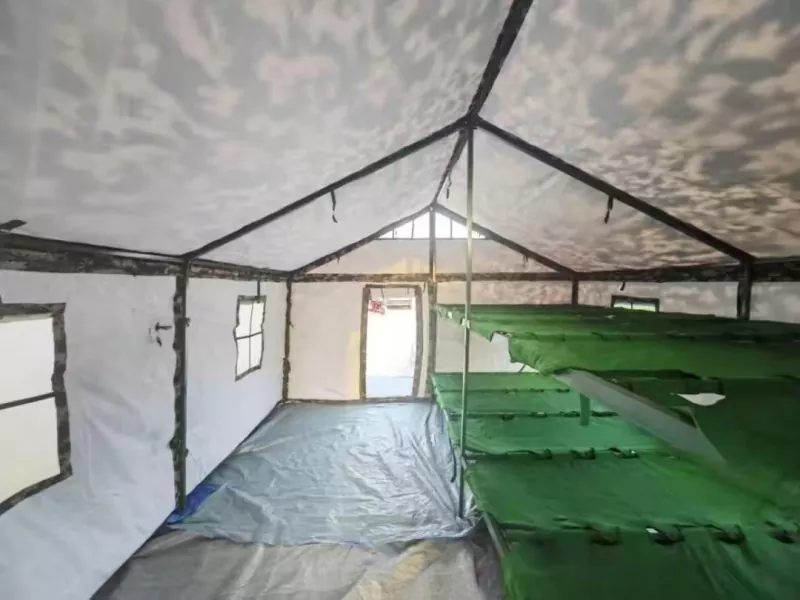

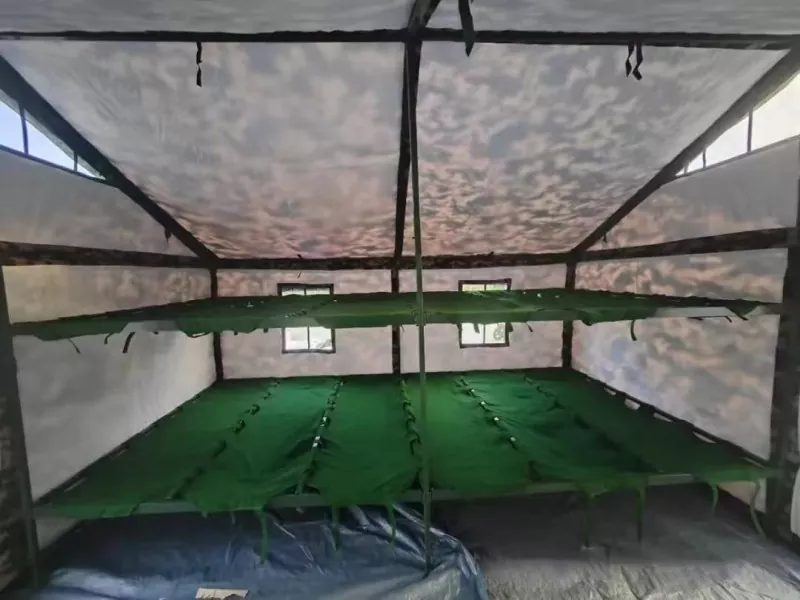

2. Structure: A dual-slope frame structure. The interior features standard double-decker canvas bunks integrated with the tent frame, accommodating four persons on each level (eight persons total); this bunk arrangement ensures efficient and rational use of both floor space and vertical volume. The tent fabric is made of waterproof polyester canvas featuring camouflage patterning, offering excellent tensile strength, tear resistance, aging resistance, and rain protection. Normal service life exceeds three years.
3. Structural Integrity: The design is sound, safe, and reliable. It can withstand its own weight, Beaufort scale force 8 winds, and a snow load of 80 mm in thickness. The structure is simple and easy to erect; setup and takedown can be completed by six people within 30 minutes. Once dismantled, the tent packs into a neat, regular shape, facilitating transport and warehouse storage. The weight and volume of the individual package are suitable for manual loading/unloading and short-distance handling.

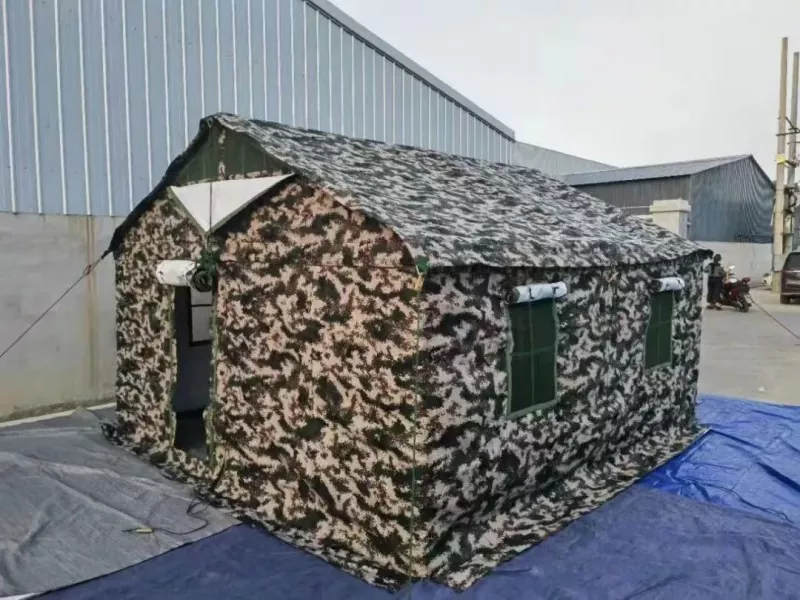

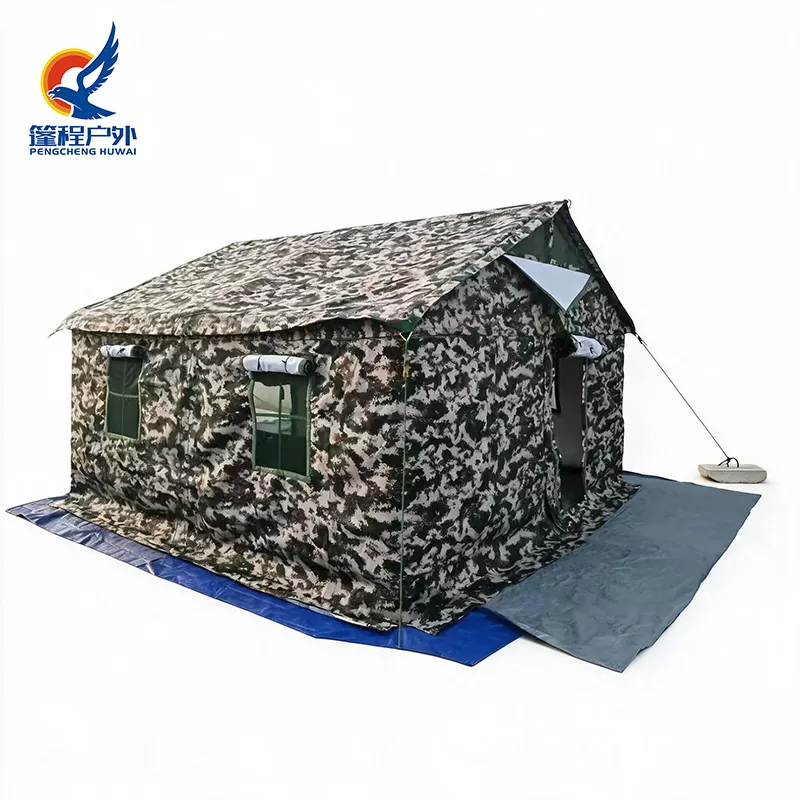

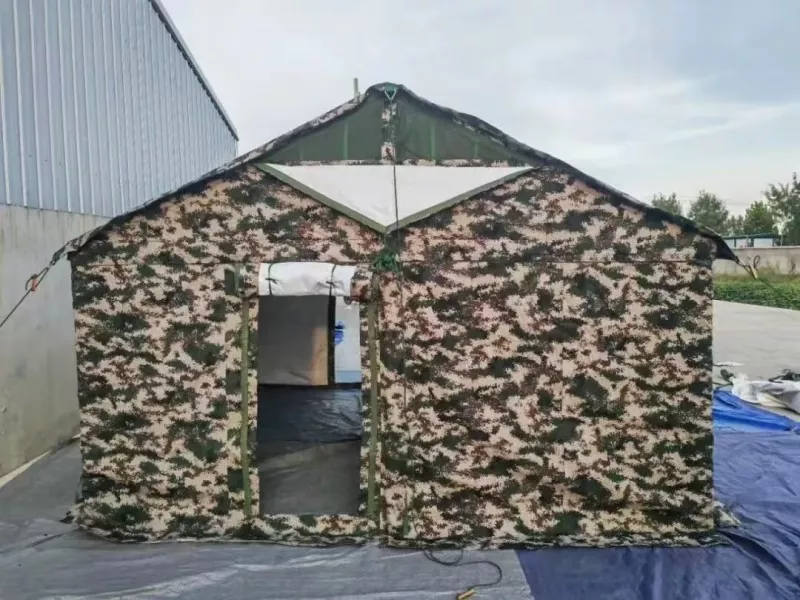

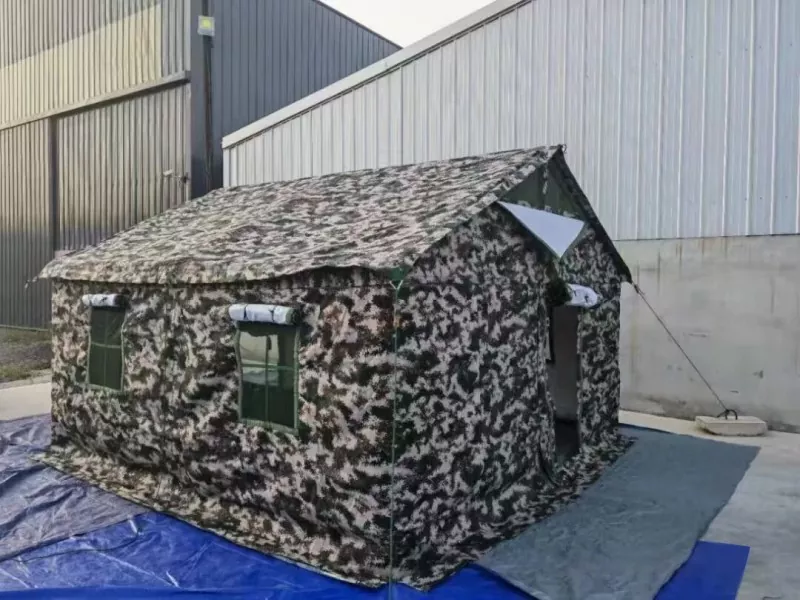

4. See Figure 1 for the full view of the tent in its deployed state.
Tangshan Pengcheng Outdoor Products Co., Ltd. is a dedicated manufacturer specializing in the R&D and production of outdoor tents, engineering tents, and cold-weather insulated tents. We operate standardized production workshops equipped with comprehensive machinery for sewing, cutting, welding, and quality inspection. We maintain full control over the entire process—from raw material sourcing and manufacturing to finished product testing and shipping—eliminating middlemen markups to ensure consistent quality and excellent value. Our factory supports small-batch custom sampling, large-volume full-container orders, and long-term stable contract manufacturing. We perfectly meet the bulk procurement needs of overseas buyers, trading companies, and engineering firms. Production schedules can be prioritized based on the urgency of delivery deadlines, and we provide standardized sea-freight packaging along with complete, compliant shipping documentation.
We offer comprehensive customization services, tailoring products to specific usage scenarios, regional climates, project standards, and branding requirements:
Customization of tent dimensions, height, and structure
Upgrades to fabric materials, waterproofing ratings, and insulation thickness
Customization of tent colors, logo printing, and graphic designs
Adjustments to accessories, door/window layouts, and ventilation structures
Customization for export-grade packaging, container loading plans, and sea-freight compatibility
A: Yes. It features a three-layer, thickened, cold-resistant structure designed specifically for low-temperature field environments. It offers stable thermal insulation, making it suitable for long-term deployment in winter, high-altitude areas, and regions with extreme cold.
A: We fully support customization—including dimensions, materials, thickness, colors, logos, and packaging—and offer OEM and ODM services.
A: Yes. As a direct manufacturer with ample production capacity, we can handle large-volume, full-container export orders. We ensure stable delivery schedules and are fully equipped to manage export logistics.
A: Yes, they meet export standards. Packaged in separate components to withstand pressure and impact, the packaging is optimized for container shipping and minimizes the risk of damage.
A: We conduct comprehensive in-house quality checks throughout the process. Every batch of finished products undergoes multiple inspections—covering waterproofing, structural integrity, load-bearing capacity, and appearance—to ensure consistent quality. Third-party inspections are also welcome. Google SEO Meta Content
For the latest bulk pricing, videos of actual samples, production capacity and lead time schedules, or customization plans, please contact Tangshan Pengcheng Outdoor Products Co., Ltd. We provide professional, efficient, one-stop tent procurement and customization services for buyers worldwide.
