Pengcheng Outdoor’s 12㎡ Emergency Disaster Relief Tents is mainly categorized into two types: 12㎡ Single Emergency Relief Tent (National Standard/Non-Standard) and 12㎡ Cotton Emergency Relief Tent (National Standard/Non-Standard). With dimensions of 3.2m (width) × 3.7m (length) × 1.75m (eave height) × 2.67m (peak height), all tents adopt high-grade waterproof and flame-retardant fabric with reinforced steel structures, increasing durability by 50%. Featuring a modular design, they are easy to maintain and quickly assemble.
|
Size |
Width 3.2m * Length 3.7 * Side height 1.75m * Top height 2.67m |
||||
|
Type |
TARP material and cotton bladder material |
Configuration |
Stent |
Weight of the tent |
Weight of bracket |
|
National standard |
Tarpaulin：666dtex X 666dtex PVC single-sided coated polyester yarn Cotton gallbladder: 400g white silk cotton Bottom fabric: 555dtex×555dtex Double sided coated polyester yarn |
One door with four windows (600mm * 800mm) Front and rear with chimney openings Printing on both sides of the canopy: Emergency Relief Printed at the entrance: Disaster relief |
Universal pole: 25mm * 1.2mm (18 pieces) Column: 25mm * 1.2mm (6 pieces) Ground crossbar: 25mm * 1.2mm (2 pieces) Three way accessories:φ28mm * 1.0mm (6 pieces) Four way accessories: 3 pieces with a diameter of 28mm * 1.0mm Ground accessories: 6 pieces with a diameter of 28mm * 1.0mm Ground nails: 8 pieces The overall bracket adopts paint spraying technology |
Tent body: 36kg Cotton gallbladder: 28kg (± 0.5kg) |
44.5kg±0.5kg |
|
Non-standard |
600D thick blue PVC Coated Oxford cloth with adhesive Cotton gallbladder: 400g white silk cotton Bottom fabric: PE fabric |
(±0.5kg) Tent body: 28kg Cotton gallbladder: 26kg (±0.5kg) |
38kg±0.5kg |
||
|
600D ordinary blue PVC Coated Oxford cloth with adhesive Cotton gallbladder: 300g white silk cotton Bottom fabric: PE fabric |
(±0.5kg) Canopy: 25kg Cotton gallbladder: 22kg (±0.5kg) |
38kg±0.5kg 30kg±0.5kg |
|||
|
600D ordinary blue PVC Coated Oxford cloth with adhesive Cotton layer: 240g white silk cotton Integrated cotton method |
One door with four windows (600mm * 800mm) Front mountain chimney mouth Printing on both sides of the canopy: Emergency Relief Printed at the entrance: Disaster relief |
28kg±0.5kg |
30.5kg±0.5kg |
||
|
National standard |
333dtex×333dtex polyester yarn Coated Oxford cloth with adhesive Cotton layer: 300g white silk cotton Bottom fabric: PE fabric |
One door with four windows (600mm * 800mm) Front and rear with chimney openings Printing on both sides of the canopy: Emergency Relief Printed at the entrance: Disaster relief Printed on the front and back mountain peaks: China Carry the national flag |
Universal pole: 25mm * 1.8mm (18 pieces) Column: 25mm * 1.8mm (6 pieces) Ground crossbars: 2 pieces of 25mm * 1.8mm in diameter Three way accessories:φ28mm * 1.0mm (6 pieces) Four way accessories: 3 pieces with a diameter of 28mm * 1.0mm Ground accessories: 6 pieces with a diameter of 28mm * 1.0mm Ground nails: 8 pieces Aluminum alloy bracket |
Overall weight: 60kg±0.5kg |
|
|
Non-standard |
300D Blue PU Coated Oxford cloth with adhesive (Not flame retardant) Cotton layer: 300g white silk cotton Bottom fabric: PE fabric |
||||
|
The above are the parameters of a 12㎡cotton tent for routine emergency rescue. The bracket, fabric, and workmanship can be customized according to customer needs. |
|||||
As a professional Chinese emergency relief tent manufacturer, Pengcheng Outdoor’s 12㎡ Emergency Disaster Relief Tents adopts high-strength waterproof and flame-retardant fabric with reinforced steel structures, increasing durability by 50% and withstanding level 8 gales. The modular design enables quick assembly and easy maintenance. Equipped with ventilation windows and emergency signs, it meets multi-scenario needs such as command centers, medical stations, and emergency shelters.Production Details1. Core Specifications and Performance of 12㎡ Emergency Disaster Relief Tents· Space and Structure: Standard rectangular double-slope vertical wall structure with dimensions 3.7m (length) × 3.2m (width) × 2.67m (peak height) × 1.75m (eave height), covering 12㎡ of usable area and accommodating approximately 5 people temporarily. The frame features a plug-in design with ground crossbars to ensure safety in strong winds.
Fabric: Typically 300D/600D PVC-coated cloth or similar materials, featuring tensile strength, tear resistance, aging resistance, and rainproof performance.

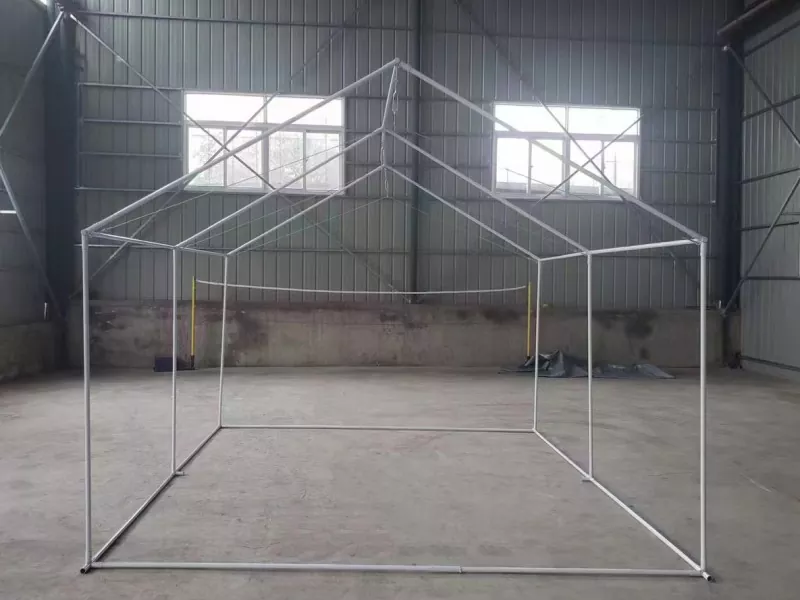

Stent: Main poles (e.g., universal poles, uprights) are made of welded steel pipes with a diameter of approximately 25mm.
Assembly and Maintenance: Designed for convenience—2 people can complete assembly in about 15 minutes. Maintenance is simple, mainly involving keeping the tent clean, checking for standing water after rain, and timely drying.
As a Chinese emergency relief tent manufacturer, Pengcheng Outdoor has bulk production and supply capabilities.
Production Qualifications and Equipment: Equipped with a range of advanced professional production equipment, including robotic welding machines, large numerical control quilting machines, and numerical control hot-melt machines. With its headquarters in Tangshan and four branches in Xi’an, Yishui, Yongqing, and Shenyang, we have established an operational network covering Shaanxi, Shandong, Hebei, Liaoning, and other provinces nationwide, ensuring stable production and supply.
Certifications: Our products have won bids for multiple government disaster relief material procurement projects, complying with relevant national or industry standards (e.g., MZ/T 011 series standards).
