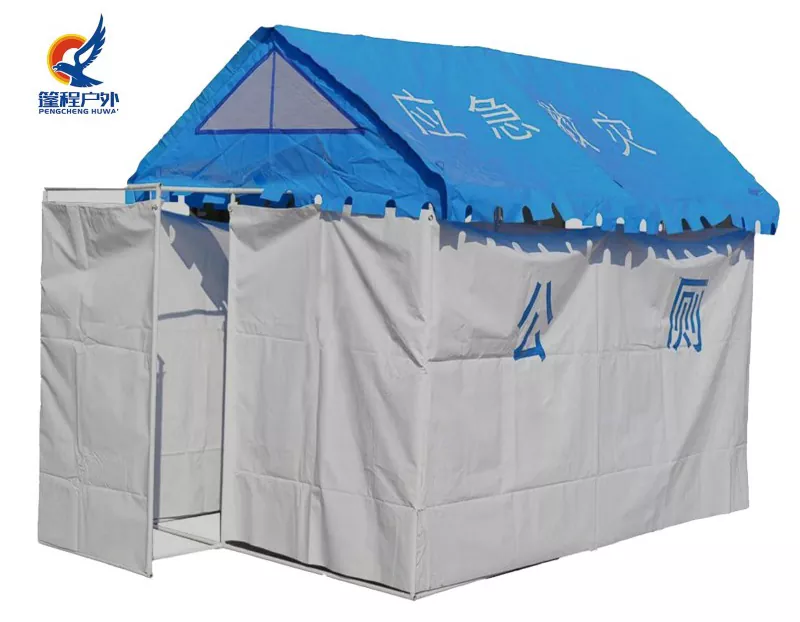

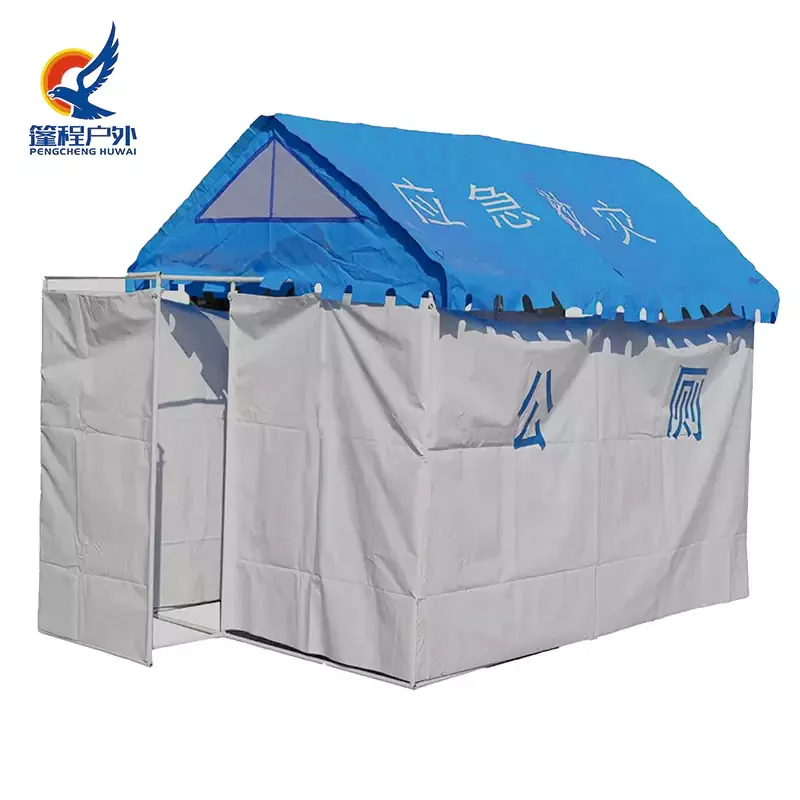

Pengcheng Outdoor’s Emergency Disaster Relief Toilet Tent is available in two versions: National Standard and Non-Standard. With dimensions of 3.9m (length) × 2.4m (width) × 1.76m (eave height) × 2.66m (peak height), the tent is equipped with 4 standard squat toilets, 1 set of disabled-accessible toilet, 3 groups of men’s urinal facilities, and a sensor lighting system.
|
Type |
Tarpaulin Material |
Configuration |
Stent |
Weight |
|
National Standard Toilet Tent |
555dtex × 555dtex PVC-coated cloth Top cloth: Sky blue PVC-coated cloth Side cloth: Milky white PVC-coated cloth |
Dimensions: 3.9m (L) × 2.4m (W) × 1.76m (Eave H) × 2.66m (Peak H) Interior: 4 squat toilets, 1 set of disabled-accessible toilet Men’s area: 3 groups of urinals, 1 sensor light |
Rods: φ25mm×1.2mm Accessories: φ28mm×1.0mm Curtain partition rods: φ22mm×1.2mm Ground nails: 6 pcs Overall bracket: Baking paint spraying process |
Canopy body: 36.5kg Bracket: 51kg Others: 81kg (±0.5kg) |
|
Non-Standard Toilet Tent |
600D PVC blue-coated cloth 1. Uniform blue top and side cloth 2. Blue top cloth + white side cloth |
Same as above (customizable) |
Same as above (adjustable per requirements) |
Canopy body: 22kg Bracket: 84kg Others: 45kg (±0.5kg) |
The above are conventional emergency disaster relief toilet tents. Customization is available according to customer needs.
Adopting a double-slope vertical wall structure, the tent is robust and easy to maintain. It has a rectangular base with a vestibule, and reserved gaps at the top of the surrounding walls for ventilation. Primarily providing basic toilet and hand-washing functions for disaster victims and rescuers, it ensures public health and safety. With characteristics of quick assembly, rainproofing, and durability, the tent adapts to outdoor or harsh environments. In practical applications, it effectively improves emergency rescue efficiency and reduces the risk of disease transmission.

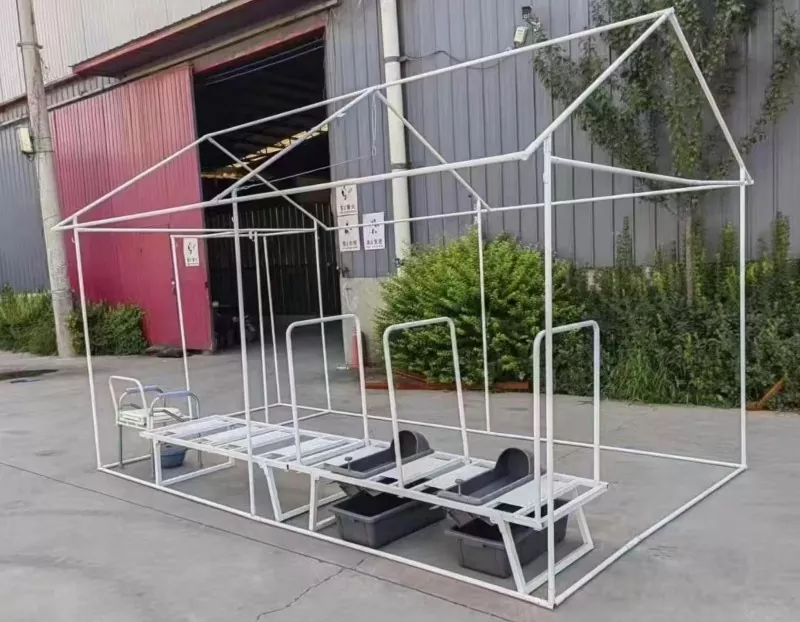

The Emergency Disaster Relief Toilet Tent features a double-slope vertical wall structure. The steel frame undergoes anti-rust treatment, the canopy uses waterproof and flame-retardant materials, and the sanitary ware is made of high-strength materials with precise dimensions ensured by mold forming. The sensor lighting system has passed waterproof and shockproof tests, suitable for outdoor use. Adopting a modular design concept, the tent enables quick assembly and disassembly—steel frame connections use snap-on joints, allowing tool-free setup. The ventilation system adopts a convection design with insect-proof screens to maintain internal air circulation.
We maintain in-stock supply of standard products and accept custom orders. Tiered price discounts are offered for bulk purchases, with competitive quotation plans available. Welcome to request the latest price list and detailed quotes. We are committed to meeting the needs of various emergency relief scenarios with high-quality Made-in-China products and professional services.
