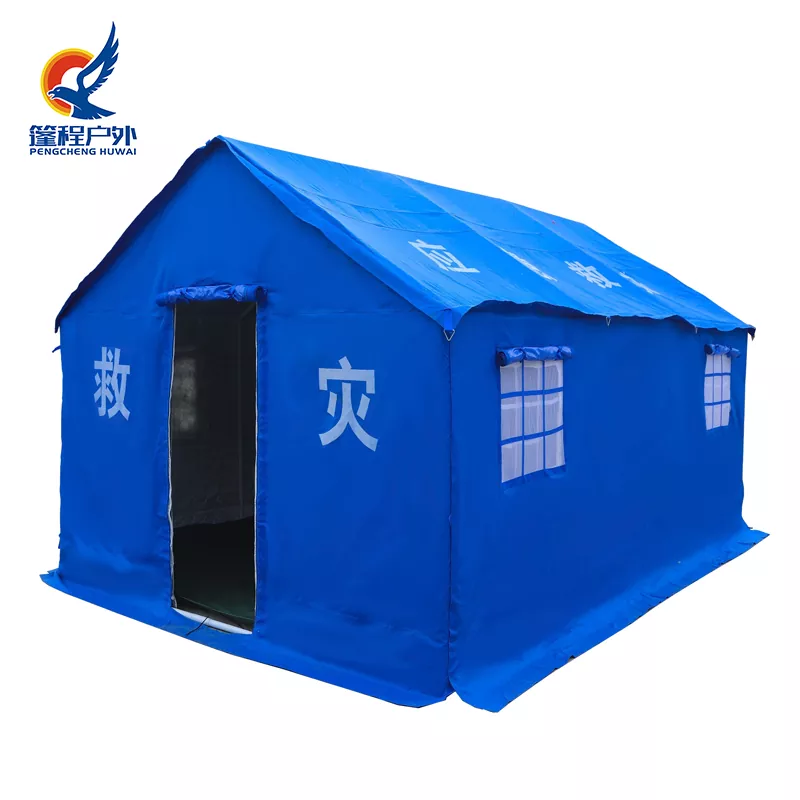

20㎡ Emergency Disaster Relief Tent

We adopt advanced production processes and cutting-edge technologies to create tents with robust structures and easy maintenance. Using high-grade waterproof and flame-retardant fabrics, the steel frames undergo anti-rust spraying. The product design fully considers long-term use and repeated assembly/disassembly needs. We provide bulk supply of in-stock items and support customization on demand to meet different budgets and delivery cycles.

Product Introduction

Pengcheng Outdoor’s 20㎡ Emergency Disaster Relief Tent is a standard-specification tent specially designed for rapid response to natural disasters, military operations, and field work. Its core values lie in rapid deployment, durability, and all-weather protection, providing a safe, dry temporary working and living space for 12-15 people. Available in single-layer, cotton-insulated, or single-cotton double-layer structures, all tents comply with National Standard or Non-Standard specifications, offering flexible choices based on customer needs.

Product Parameters (Specifications)

Detailed Parameter Description of 20㎡ Emergency Disaster Relief Tents Canopy

Size	Type	TARP Material	Configuration	Stent	Weight of the Tent	Weight of Bracket
3.63m (W) × 5.6m (L) × 1.7m (Eave H) × 2.65m (Peak H)	National Standard Single Tent	1111dtex × 1111dtex PVC-coated polyester yarn	1 door + 4 windows (560mm×1020mm);  Canopies supportable on both sides;  Printing on both sides of the canopy: "Emergency Relief"; Printing at the entrance: "Disaster Relief"	Universal poles: φ38mm×1.2mm (25 pcs);  Columns: φ38mm×1.2mm (8 pcs); Ground crossbars: φ38mm×1.2mm (2 pcs);  Three-way fittings: φ42mm×1.5mm (6 pcs);  Four-way fittings: φ42mm×1.5mm (6 pcs);  Ground fittings: φ42mm×1.5mm (8 pcs);  Ground nails: 10 pcs;  Overall bracket: Paint spraying process	62kg±0.5kg	Bracket 1: 51kg;  Bracket 2: 47kg (±0.5kg)
	Non-Standard Single Tent	600D blue PVC-coated Oxford cloth with adhesive	1 door + 4 windows (600mm×800mm);  Printing on both sides of the canopy: "Emergency Relief";  Printing at the entrance: "Disaster Relief"	-	34.5kg±0.5kg	Bracket 1: 47kg;  Bracket 2: 29kg (±0.5kg)

Note: The above are standard parameters for 20㎡ single emergency relief tents. Brackets, fabrics, and craftsmanship can be customized according to customer requirements.

Detailed Parameter Description of 20㎡ Cotton Emergency Relief Tent Canopy

Size	Type	TARP Material	Configuration	Stent	Weight of the Tent	Weight of Bracket
3.63m (W) × 5.6m (L) × 1.7m (Eave H) × 2.65m (Peak H)	National Standard Cotton Tent	Tent fabric: 1111dtex × 1111dtex PVC-coated polyester yarn; Cotton layer: 400g white silk cotton; Bottom fabric: 555dtex × 555dtex	1 door + 4 windows (560mm×1020mm); Front/rear chimney openings; Canopies supportable on both sides;  Printing on both sides of the canopy: "Emergency Relief";  Printing at the entrance: "Disaster Relief"	Universal poles: φ38mm×1.2mm (25 pcs);  Columns: φ38mm×1.2mm (8 pcs);  Ground crossbars: φ38mm×1.2mm (2 pcs);  Three-way fittings: φ42mm×1.5mm (6 pcs);  Four-way fittings: φ42mm×1.5mm (6 pcs);  Ground fittings: φ42mm×1.5mm (8 pcs);  Ground nails: 10 pcs; Overall bracket: Paint spraying process	Tent body: 62kg; Cotton bladder: 47kg (±0.5kg)	Bracket 1: 51kg; Bracket 2: 47kg (±0.5kg)
	Non-Standard Cotton Tent	Tent fabric: 600D blue PVC-coated Oxford cloth with adhesive;  Cotton layer: 400g white silk cotton; Bottom fabric: PE cloth	1 door + 4 windows (600mm×800mm);  Front/rear chimney openings;  Printing on both sides of the canopy: "Emergency Relief";  Printing at the entrance: "Disaster Relief"	-	Canopy: 38kg; Cotton bladder: 36kg (±0.5kg)	Bracket 1: 47kg; Bracket 2: 29kg (±0.5kg)
	Non-Standard Cotton Tent	Tent fabric: 600D blue PVC-coated Oxford cloth with adhesive;  Cotton layer: 240g white silk cotton (integrated cotton design)	-	-	45kg±0.5kg	-

Note: The above are standard parameters for 20㎡ cotton emergency relief tents. Brackets, fabrics, and craftsmanship can be customized according to customer requirements.

Product Features and Applications

Pengcheng Outdoor’s 20㎡ Emergency Disaster Relief Tent boasts a robust structure, wind and rain resistance, and easy operation, enabling rapid deployment. With no central columns inside, it offers flexible layout and large usable area, along with UV resistance and wear resistance. Thanks to its reliable protection, rapid mobility, and practical space design, it has become the preferred basic equipment for responding to various emergencies and field tasks, and a key link in achieving efficient emergency response and logistics support.

Production Details

As a professional Chinese manufacturer and supplier of emergency relief tents, Pengcheng Outdoor deeply understands the mission of safeguarding lives that each tent carries in critical moments. Adhering to strict factory production standards and precision manufacturing processes, we ensure every 20㎡ Emergency Relief Tent (exact dimensions: 3.63m width × 5.6m length × 1.7m eave height × 2.65m peak height) delivers exceptional quality, high-grade protection performance, and long-term durability.

Precision Structure and Material Science: The Foundation of Reliability

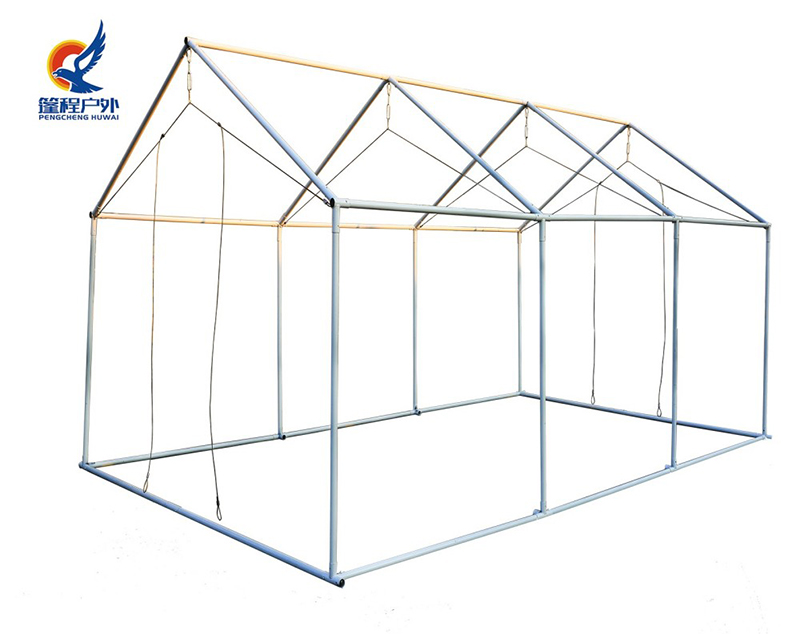

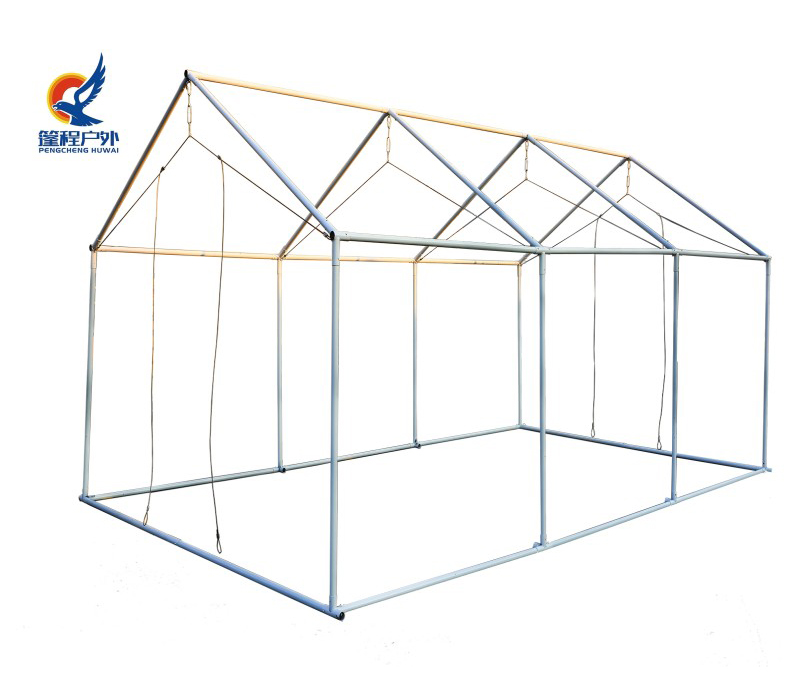

The reliability of the tent first stems from the pursuit of excellence in dimensions and materials. Pengcheng Outdoor uses high-quality high-frequency welded pipes, which undergo high-precision bending processing with CNC pipe bending machines to ensure each bracket accurately matches the designed peak height and eave height—this is the physical prerequisite for rapid tent assembly and overall structural stability. All steel pipes undergo paint spraying treatment to form a firm corrosion-resistant protective layer. The tent fabric is calculated and cut according to precise dimensions: we use high-density waterproof Oxford cloth with double-sided PVC coating, integrating multiple functions such as waterproofing, mildew resistance, and UV resistance, ensuring product durability and easy maintenance from the material perspective.

Core Processes and Detail Control: Quality Beyond Standards

In core manufacturing links, we adopt production processes far exceeding ordinary standards to guarantee quality. After precise cutting of the tent fabric on large computerized cutting machines, all key stress-bearing parts are reinforced with high-strength double-needle four-thread chain stitching, which can effectively withstand tearing forces from harsh environments such as strong winds. More critically, all tent fabric seams must undergo high-temperature heat-sealing and adhesive pressing on specialized equipment. This process fuses special adhesive strips with the fabric completely through heat and pressure, forming a permanent sealing layer that physically eliminates the possibility of rainwater seepage through needle holes—this is the core of our product’s high-grade waterproof performance.

After final assembly, each tent must undergo strict inspection. As a leading Chinese manufacturer, we offer competitive quotes at factory-direct prices, ensuring you can purchase the latest high-quality emergency relief tents at a cost-effective price.

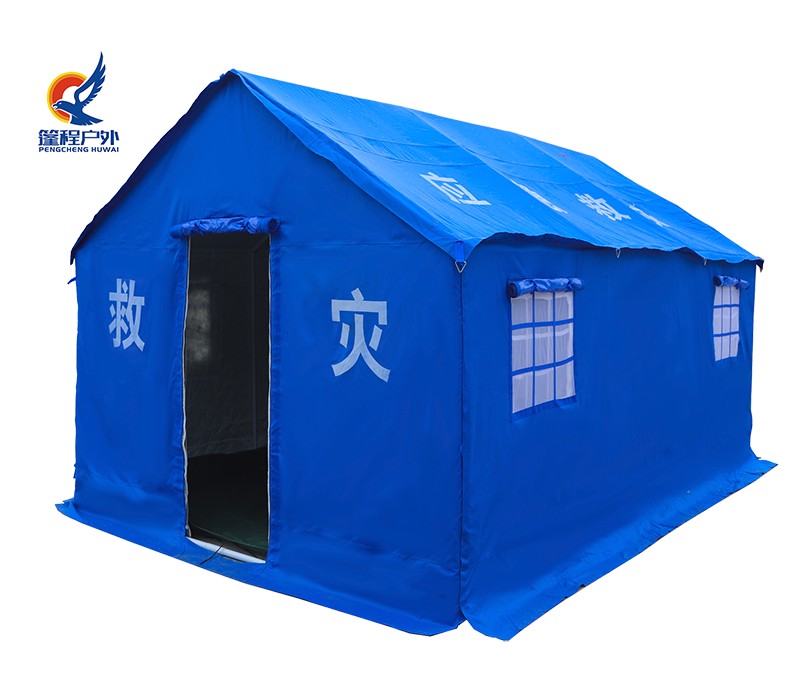

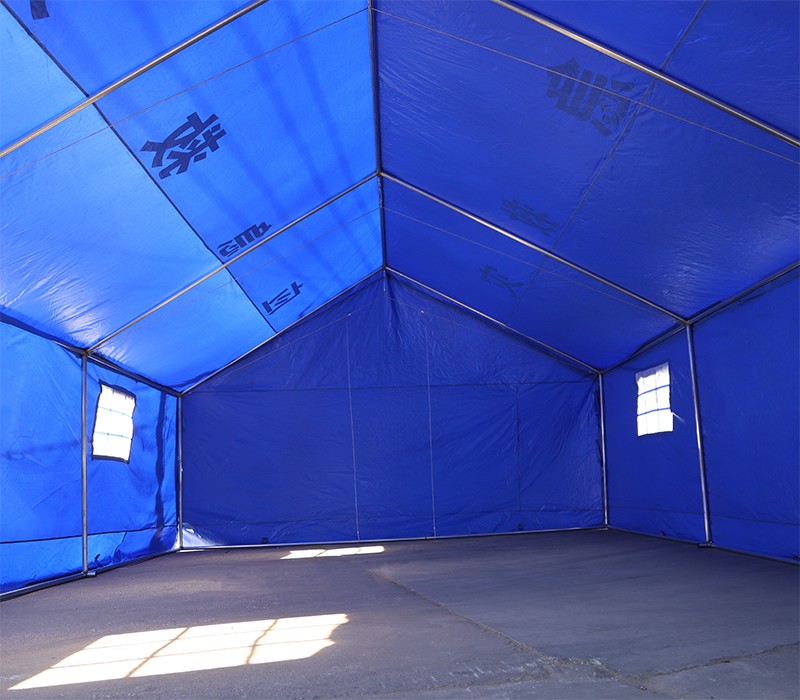

Emergency relief 20㎡ single tent

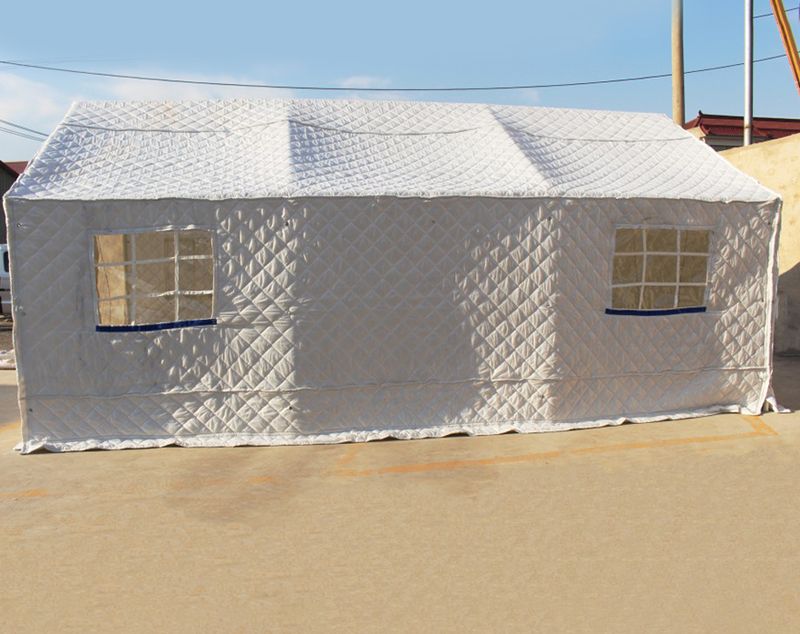

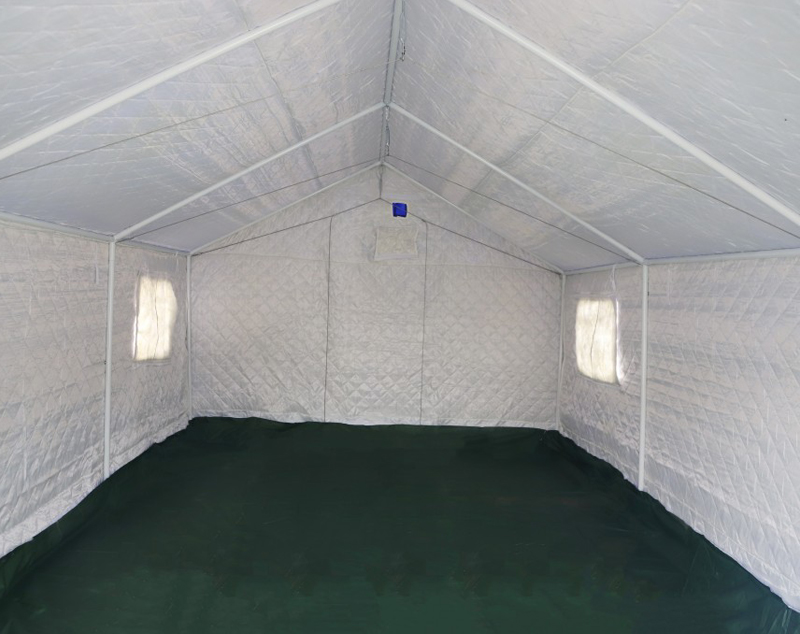

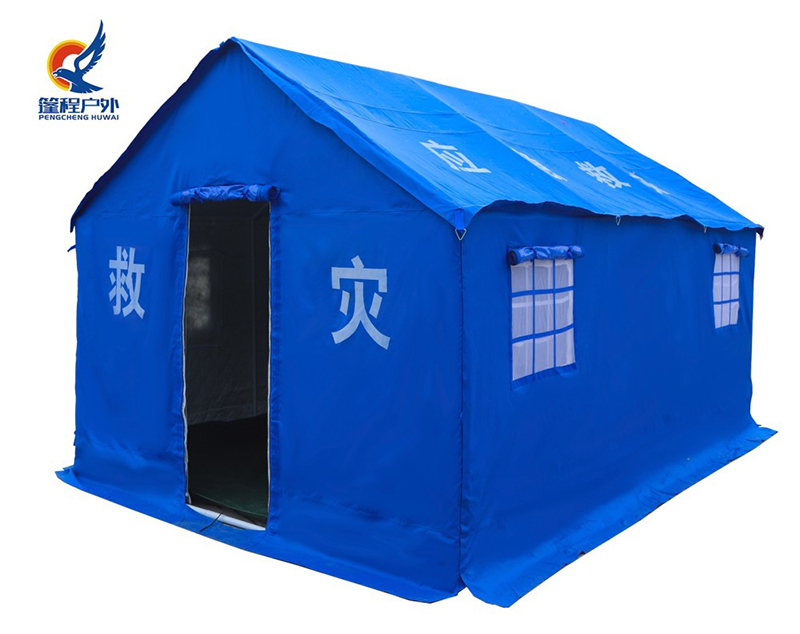

20㎡ Emergency Relief Cotton Tent
