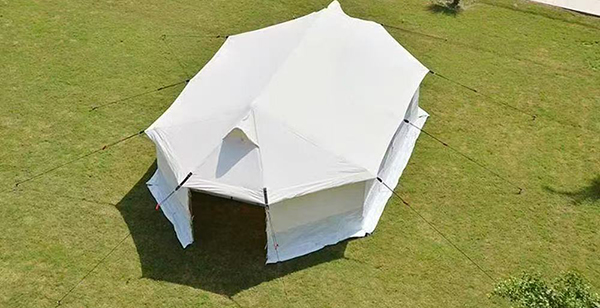

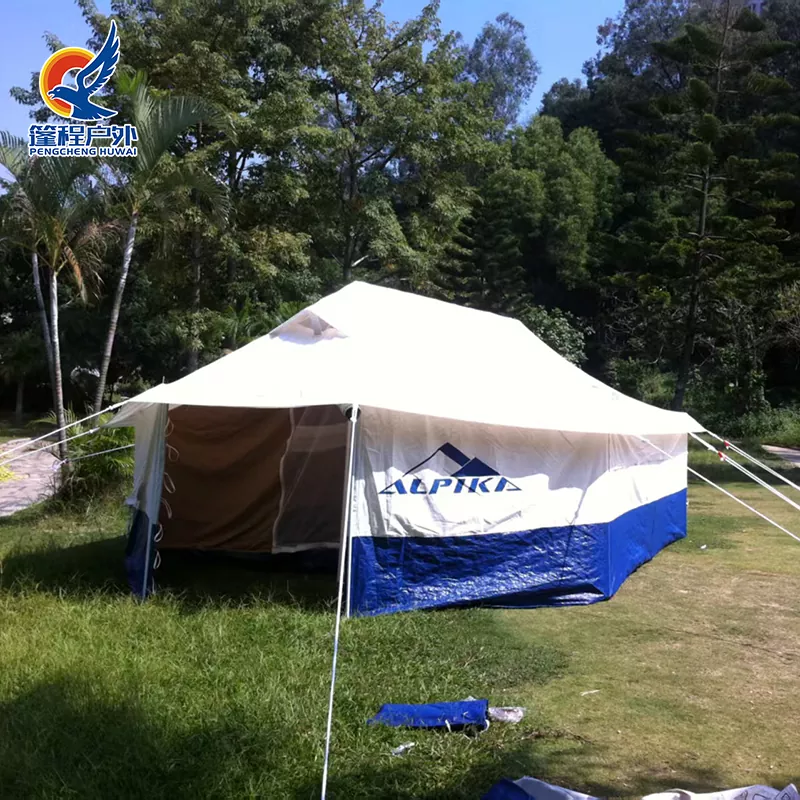

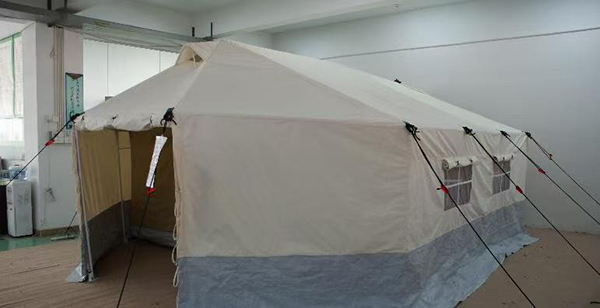

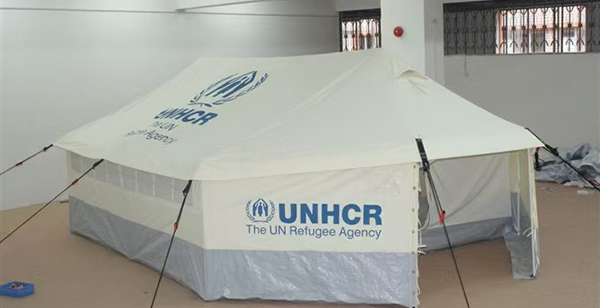

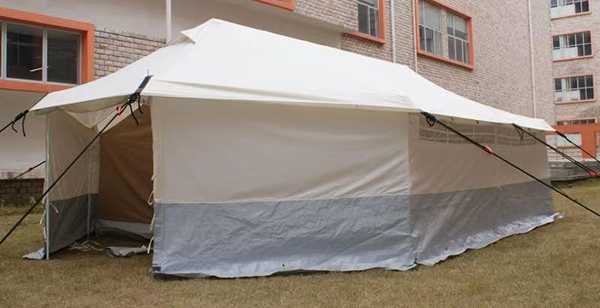

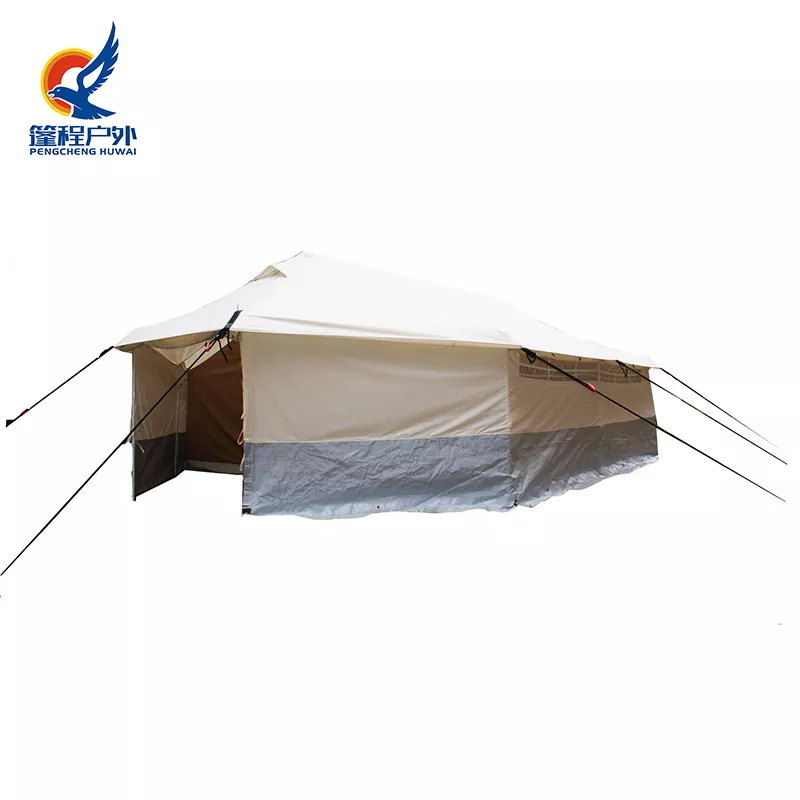

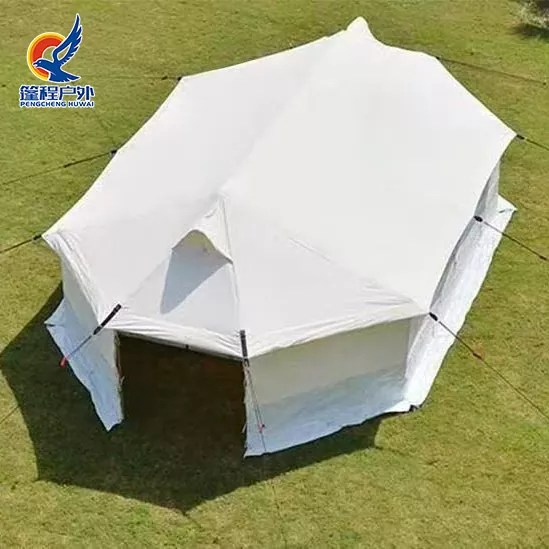

Family Emergency Relief Tent

This family emergency relief tent is designed and manufactured in accordance with UNHCR material standards for temporary family accommodation in disaster and crisis situations. It provides a standardized, weather-resistant shelter solution for up to five people and is suitable for use after earthquakes, floods, typhoons, extreme weather events, and other emergencies.

The tent is intended for medium- to long-term deployment in outdoor environments, including tropical, temperate, and cold climate zones. The structure combines a hot-dip galvanized steel frame with a reinforced HDPE fabric shell and an integrated bathtub-style groundsheet. It is delivered in a compact package for efficient transport, storage, and field distribution.

Key Specifications

Parameter	Details
Capacity	Up to 5 persons
Outer fabric	HDPE double-side laminated woven fabric
Groundsheet	One-piece bathtub-style PE waterproof groundsheet
Frame material	Hot-dip galvanized steel tube
Total weight	Approx. 55–56 kg per set
Packed volume	Approx. 0.35 m³ per set
Main functions	Waterproof, UV-resistant, flame-retardant, wind-resistant, ventilated, insect-protected
Customization	Size adjustments, logo printing, internal partitions, winter insulation kit

Materials and Construction

Outer fabric
The outer shell is made from double-side laminated HDPE woven fabric. This material provides resistance to water penetration, UV degradation, and general wear. The fabric is treated to meet flame-retardant requirements commonly referenced in humanitarian procurement specifications.

Groundsheet
The floor is a single-piece, high-sided PE bathtub groundsheet. The raised edge design helps prevent groundwater ingress, surface runoff, and moisture penetration from the surrounding ground.

Frame
All structural poles are manufactured from hot-dip galvanized steel tubing. The galvanized coating offers corrosion resistance for outdoor use over extended periods. Connection points and load-bearing areas are reinforced with high-strength webbing.

Guy lines and pegs
The tent includes a full set of guy lines and steel pegs. Reinforced attachment points are positioned to maintain structural stability under wind and rain loads.

Performance and Durability

The shelter is designed for continuous outdoor use in post-disaster camps and temporary settlement areas. Under normal field conditions, the tent body and frame are expected to maintain their basic protective functions — waterproofing, UV shielding, wind resistance, and thermal insulation — for at least 12 months.

Each production lot undergoes factory testing for:

Water penetration resistance

Fabric tensile strength

Flame retardancy

Frame load-bearing capacity

Test records can be provided for institutional buyers upon request.

Deployment and Packaging

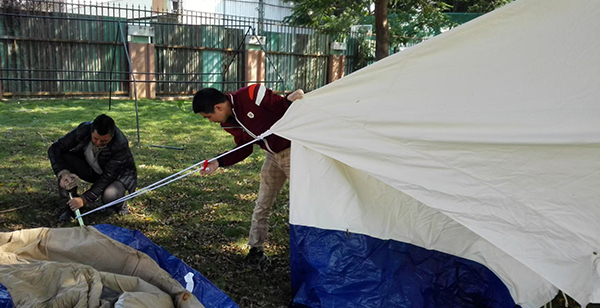

The tent uses a modular frame system that can be assembled by two people without specialized tools or technical training. The packed unit is compact and stackable, suitable for:

Containerized sea freight

Long-distance truck transport

Warehouse stockpiling

Rapid distribution in disaster response operations

Intended Use Cases

Post-disaster family shelter after earthquakes, floods, typhoons, and storms

Temporary housing in refugee camps and displacement sites

Humanitarian aid programs and international relief projects

Temporary accommodation for remote mining, field engineering, and exploration teams

Emergency evacuation points during public health incidents or major accidents

Customization Options

For bulk procurement, the following customizations are available:

Tent dimensions and layout

Printed logos and outdoor marking

Internal fabric partitions

Winter insulation package (additional inner layer or thermal lining)



Customized specifications are confirmed through a technical review process before production.

Manufacturer Information

Tangshan Pengcheng Outdoor Products Co., Ltd. is an ISO 9001 and ISO 14001 certified manufacturer specializing in emergency and relief tents. The company operates four production and warehousing bases in Shenyang, Xi'an, Linyi, and Yishui, with a main tent production facility of over 15,000 m².

The company holds 36 patents, including 2 invention patents and 34 utility model patents, and has obtained multiple certifications for product quality, environmental management, and after-sales service. Its tent products are exported to Southeast Asia, Africa, and the Middle East.

Frequently Asked Questions

1. What standards does this tent comply with?

The tent is designed and produced according to UNHCR material standards for family relief tents. Fabric, frame, and construction specifications are aligned with common humanitarian procurement requirements.

2. How many people are needed to set up the tent?

Two people can complete the setup without specialized tools. The frame uses a modular design with labeled components.

3. Can the tent be used in winter conditions?

The standard version is suitable for temperate and tropical climates. For cold climates, a winter insulation kit can be added as a customization option.

4. Is the fabric fire-resistant?

Yes, the HDPE outer fabric is treated with a flame-retardant finish. Test certificates are available for institutional orders.

5. What is the expected service life?

Under normal field conditions, the tent is designed to maintain its core protective functions for at least 12 months of continuous outdoor use.

6. Can you add partitions or custom printing?

Yes. Internal partitions, logo printing, and size adjustments are supported for bulk orders.

7. What is the minimum order quantity?

Minimum order quantities depend on the customization level. Standard configurations are available for smaller trial orders. Contact the manufacturer for specific terms.

Procurement and Contact

For government tenders, humanitarian organizations, NGOs, and international trade buyers, product specifications, test reports, and quotation documents are available upon request.

Please send your project requirements, including expected quantity, destination country, and any customization needs, to the manufacturer for technical review and official pricing.
