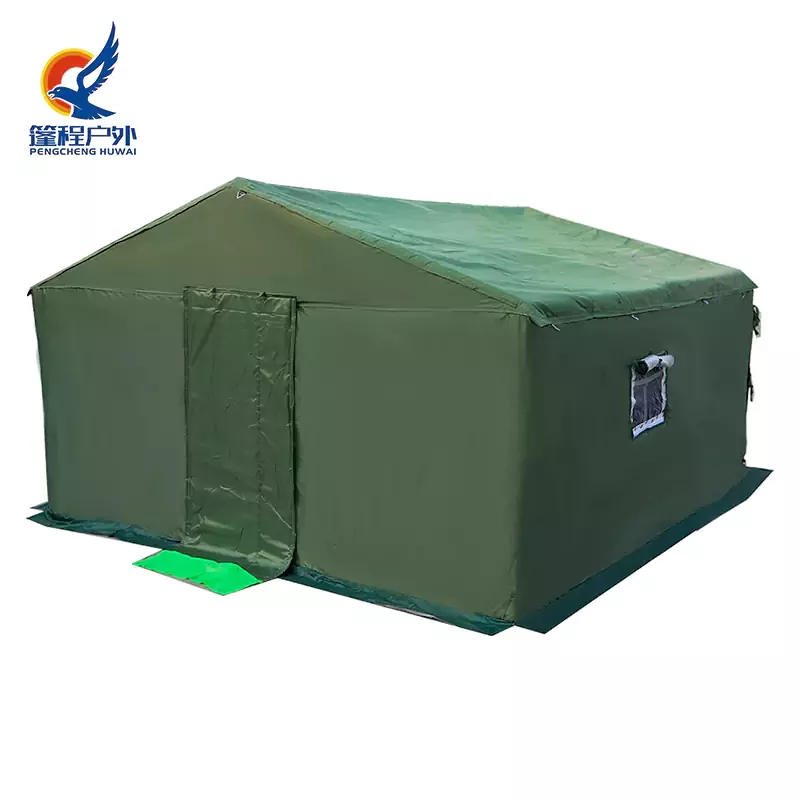

The 2.5×3.5m Construction Tent is a small functional unit in the construction tent series, mainly designed to meet the on-site needs of individuals or small groups of personnel. In engineering projects, this model is often used as a duty room, temporary office, equipment monitoring post or independent accommodation unit, ideal for construction environments with limited space or frequent relocation needs.
Compared with larger-sized tents, this model has obvious advantages in floor space occupation, transportation and erection efficiency.
Common application scenarios of this tent model include:
· Urban road and municipal maintenance projects
· Small construction sites or decentralized operation areas
· Temporary stationed posts for field exploration
· Duty and shift work during flood control and emergency rescue missions
In multi-point distributed construction, the 2.5×3.5m Construction Tent can be quickly deployed to meet basic functional requirements.
|
Detailed parameter description of tent construction tent |
||||
|
Size |
Fabric |
Bracket |
Configure |
Bracket weight |
|
3*2(1 room) |
1*2 thick rubber plastic top 420 tapered oxford cloth 400 floral silk cotton High quality green oxford lining cloth |
The bracket pipe isφ32*1.2mm thick galvanized steel pipe The tee and four-way areφ32*1.2mn thick painted round tubes With Diliang |
One door and two windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
85kg |
|
3*4(2 room) |
One door and four windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
123kg |
||
|
5*4(2 room) |
Two doors and four windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
131kg |
||
|
5*6(3 room) |
Two doors and six windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
196kg |
||
|
5*8(4 room) |
Two doors and eight windows 2 pieces of cloth + front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
241kg |
||
|
5*10(5 room) |
Two doors and ten windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
287kg |
||
|
The workmanship, materials and parameters of these products can be customized according to customer requirements. |
||||
Despite its compact size, this model maintains high standards in structural design and material selection.
|
Item |
Configuration Description |
|
Support Structure |
φ32×1.2mm galvanized steel pipes |
|
Connectors |
Painted steel tee and four-way connectors |
|
Roof Material |
Rubber-plastic composite waterproof roof cloth |
|
Enclosure Material |
420 coated Oxford cloth |
|
Thermal Insulation Layer |
Flame-retardant polyester needle-punched cotton |
|
Inner Lining |
Oxford cloth inner lining |
The overall structure is stable, suitable for short-to-medium-term continuous use.
The 2.5×3.5m Construction Tent adopts a standardized modular design with a relatively small number of components:
· Can be erected by 2–3 people
· Erection time: approximately 20–30 minutes
· Can be quickly disassembled and reused
This feature gives it high turnover efficiency in projects requiring frequent site relocation or short construction cycles.
This model maintains consistent key performance indicators with medium and large-sized tents:
· Wind Resistance : ≥ Grade 8
· Waterproof Rating : ≥ 3000mm
· Operating Temperature Range : -30℃ to +50℃
· Flame-Retardant Rating : Class B1 (thermal insulation layer)
In its compact form, it still meets the basic safety requirements of complex construction environments.
The 2.5×3.5m Construction Tent supports bulk spot supply and can also be customized according to project needs, including adjustments to the number of doors and windows, thermal insulation grade and internal configurations.
This model is often used in combination with medium and large-sized tents as an independent functional supplementary unit in construction camps, facilitating flexible configuration of the overall project.
