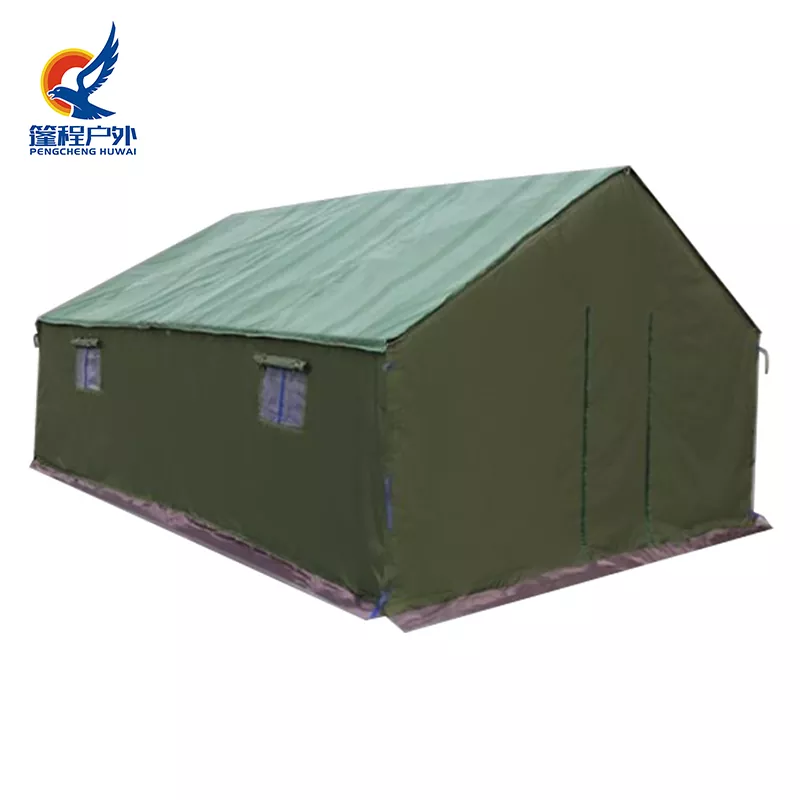

The 4.5×5m Construction Tent is a practical specification that falls between standard medium-sized and large-sized tents. It is often adopted in engineering projects that have clear space requirements but do not want to use tents with overly large spans. While keeping floor space under control, this size provides a relatively complete functional layout space, making it suitable for long-term continuous use at construction sites.
During the tent selection phase, this specification is often a candidate for the primary model , serving high-frequency daily functions.
Based on practical engineering applications, the scope of application for this tent model is clearly defined:
· Suitable for accommodation or mixed use by 3–5 people
· Can accommodate beds, storage facilities and simple office equipment simultaneously
· Applicable to fixed or semi-fixed camp environments
When projects require larger centralized spaces, it can be used in conjunction with 5×6m or 5×8m tents; in space-constrained areas, it can replace larger-sized tents for standalone deployment.
|
Detailed parameter description of tent construction tent |
||||
|
Size |
Fabric |
Bracket |
Configure |
Bracket weight |
|
3*2(1 room) |
1*2 thick rubber plastic top 420 tapered oxford cloth 400 floral silk cotton High quality green oxford lining cloth |
The bracket pipe isφ32*1.2mm thick galvanized steel pipe The tee and four-way areφ32*1.2mn thick painted round tubes With Diliang |
One door and two windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
85kg |
|
3*4(2 room) |
One door and four windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
123kg |
||
|
5*4(2 room) |
Two doors and four windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
131kg |
||
|
5*6(3 room) |
Two doors and six windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
196kg |
||
|
5*8(4 room) |
Two doors and eight windows 2 pieces of cloth + front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
241kg |
||
|
5*10(5 room) |
Two doors and ten windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
287kg |
||
|
The workmanship, materials and parameters of these products can be customized according to customer requirements. |
||||
The 4.5×5m Construction Tent adopts a standardized steel structure system, maintaining structural balance while expanding internal area.
· Main Support : φ32×1.2mm galvanized steel pipes
· Connection Nodes : Painted tee and four-way connectors
· Bottom System : Ground beam structure to enhance overall wind resistance and anti-displacement capacity
This structural design ensures excellent force balance for medium-span applications, ideal for long-term outdoor use.
This tent model offers high flexibility in internal layout, which can be adjusted according to different project phases:
· Serves as accommodation or duty tents in the early project stage
· Converted into offices or technical support rooms during the mid-term
· Used as material or equipment storage space in the later stage
Door and window configurations, as well as internal partitions, can be customized to meet specific needs, ensuring the tent remains usable throughout the entire project cycle.
In terms of material and performance configurations, the 4.5×5m Construction Tent is consistent with medium and large-sized model
|
Item |
Indicator |
|
Wind Resistance |
≥ Grade 8 |
|
Waterproof Rating |
≥ 3000mm |
|
Operating Temperature Range |
-30℃ to +50℃ |
|
Flame-Retardant Performance |
Class B1 (thermal insulation layer) |
The multi-layer composite tarpaulin structure balances waterproofing, thermal insulation and wear resistance, making it suitable for complex construction environments.
This tent model is manufactured in our proprietary Chinese factories, strictly complying with the ISO9001 quality management system, and supports both spot supply and customized production.
It is suitable for:
· Overall procurement for engineering projects
· Phased camp deployment
· OEM or project-specific customized supporting services
In engineering camps, the 4.5×5m Construction Tent functions as a stable, high-frequency use unit, ideal for inclusion in long-term standard configuration plans.
