The 3×4m Construction Tent is a medium-sized construction tent, commonly used as accommodation for 2 or more workers, on-site duty rooms, temporary offices and equipment monitoring rooms at construction sites. Compared with the 3×2m single-unit tent, this size increases internal usable space without significantly expanding the floor area, making it more suitable for engineering projects requiring long-term continuous use.
At road construction sites, mining operations, field exploration projects and flood control & emergency rescue sites, this tent model is usually arranged in rows as standard living or functional units for centralized management.

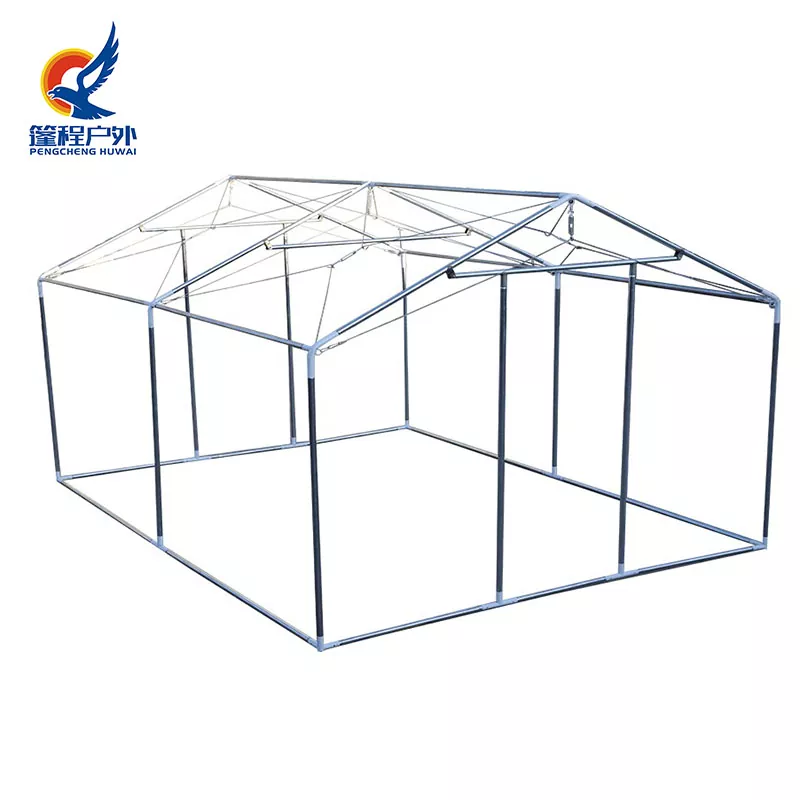

The 3×4m Construction Tent adopts a modular steel structure design, consisting of three main parts: the frame system, the tarpaulin system and the ground connection system. Each part has a clear function, facilitating easy installation and maintenance.
Main support: φ32×1.2mm galvanized steel pipes
Connectors: φ32×1.2mm painted tee and four-way connectors
Bottom structure: Equipped with ground beams to enhance overall stability
This structure maintains a controlled weight while meeting the basic requirements for wind resistance and deformation resistance in construction site environments.
Roof: 1×2 thick rubber-plastic composite roof cloth
Enclosure: 420 coated Oxford cloth
Thermal insulation layer: 400 filament cotton
Inner lining: High-quality green Oxford inner lining
The multi-layer composite design balances waterproof, thermal insulation and wear-resistant performance, making it suitable for long-term outdoor use.

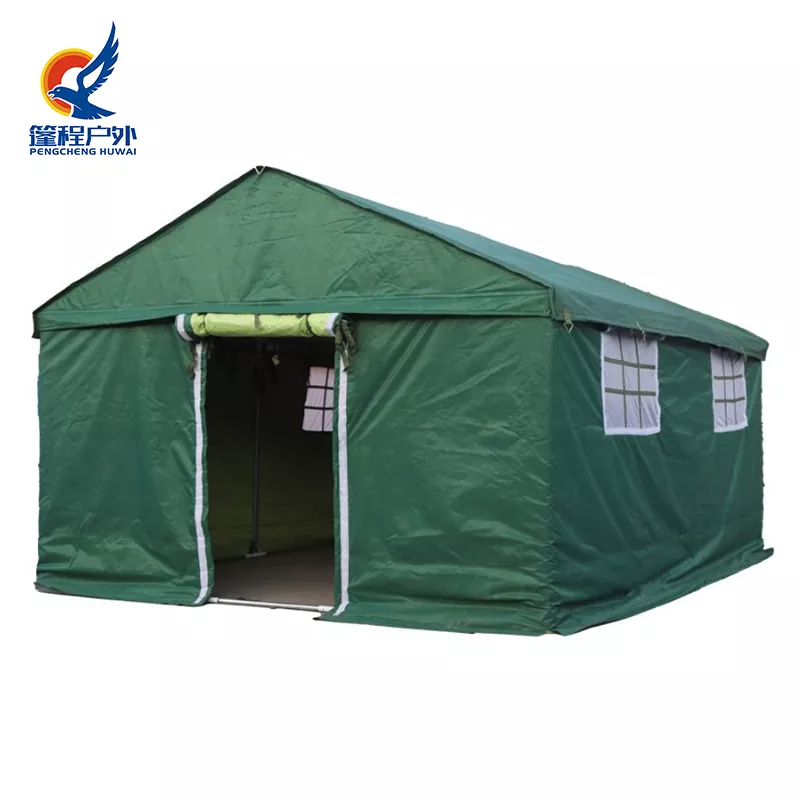

The standard configuration of the 3×4m Construction Tent includes one door and four windows. The windows adopt a grid-patterned structure with independent inner curtains, which helps with lighting, ventilation and privacy management.
|
Item |
Configuration Description |
|
Door |
Single-door structure with independent door curtain |
|
Windows |
Four grid-patterned windows with independent curtains |
|
Enclosure Cloth |
One-piece integrated enclosure cloth |
|
Capacity |
2–4 people (depending on interior layout) |
Compared with smaller-sized tents, this model offers greater flexibility for placing beds, storage boxes or simple office desks.
|
Detailed parameter description of tent construction tent |
||||
|
Size |
Fabric |
Bracket |
Configure |
Bracket weight |
|
3*2(1 room) |
1*2 thick rubber plastic top 420 tapered oxford cloth 400 floral silk cotton High quality green oxford lining cloth |
The bracket pipe isφ32*1.2mm thick galvanized steel pipe The tee and four-way areφ32*1.2mn thick painted round tubes With Diliang |
One door and two windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
85kg |
|
3*4(2 room) |
One door and four windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
123kg |
||
|
5*4(2 room) |
Two doors and four windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
131kg |
||
|
5*6(3 room) |
Two doors and six windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
196kg |
||
|
5*8(4 room) |
Two doors and eight windows 2 pieces of cloth + front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
241kg |
||
|
5*10(5 room) |
Two doors and ten windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
287kg |
||
|
The workmanship, materials and parameters of these products can be customized according to customer requirements. |
||||
Designed for complex construction site environments, the 3×4m Construction Tent delivers stable performance across the following key metrics:
Wind resistance: ≥ Grade 8
Waterproof rating: ≥ 3000mm
Operating temperature range: -30℃ to +50℃
Fire performance: The insulation layer meets the Class B1 flame-retardant standard
This performance combination enables the tent to be used continuously in alpine regions, rainy southern areas or construction sites with large day-night temperature differences.
The tent features standardized component design and can be disassembled and packaged for transportation via truck or container.
Under normal conditions, it can be erected by 4 people in approximately 30 minutes without the need for large mechanical equipment, making it ideal for mobile operation projects requiring frequent site relocation.
All 3×4m Construction Tents are produced in our proprietary Chinese factories, in strict compliance with the ISO9001 quality management system:
Steel pipe processing: High-frequency welding + hot-dip galvanizing
Tarpaulin cutting: Computerized automatic cutting machine
Finished product inspection: Structural stability test, wind and rain simulation test, assembly inspection
Random sampling inspections are conducted on each batch of products before delivery to ensure that the structure and materials meet the design standards.
Customizable dimensions, fabric thickness and thermal insulation grade
Adjustable number of doors/windows and internal functional configurations
As one of the basic specifications in engineering projects, the 3×4m Construction Tent is often used in combination with tents of other sizes to form a complete construction living area.
