Pengcheng Outdoor construction tents (also called cotton tents and civil construction tents) mainly include two series: Pengcheng Construction Tent and Sanyou Construction Tent. Designed for practical scenarios such as engineering construction, field operations and emergency support, these tents meet the needs of short-to-medium-and-long-term centralized accommodation and on-site support.
Produced in our proprietary Chinese factories, the products cover the entire manufacturing process including steel structure processing, tarpaulin compounding and finished product inspection. Through systematic design of structural strength, thermal insulation performance and waterproof rating, the tents maintain stable usability in complex environments, making them suitable for alpine, high-temperature, rainy and windy areas.
Pengcheng Outdoor construction tents adopt a high-strength galvanized steel frame structure, combined with multi-layer composite tarpaulin and thermal insulation materials, balancing structural stability and living comfort. The overall design is based on modular assembly, facilitating transportation, rapid erection and later maintenance.
All specifications are available for bulk spot supply. Meanwhile, customization of dimensions, fabric thickness, number of doors and windows, thermal insulation grade and functional configurations can be done according to project requirements.

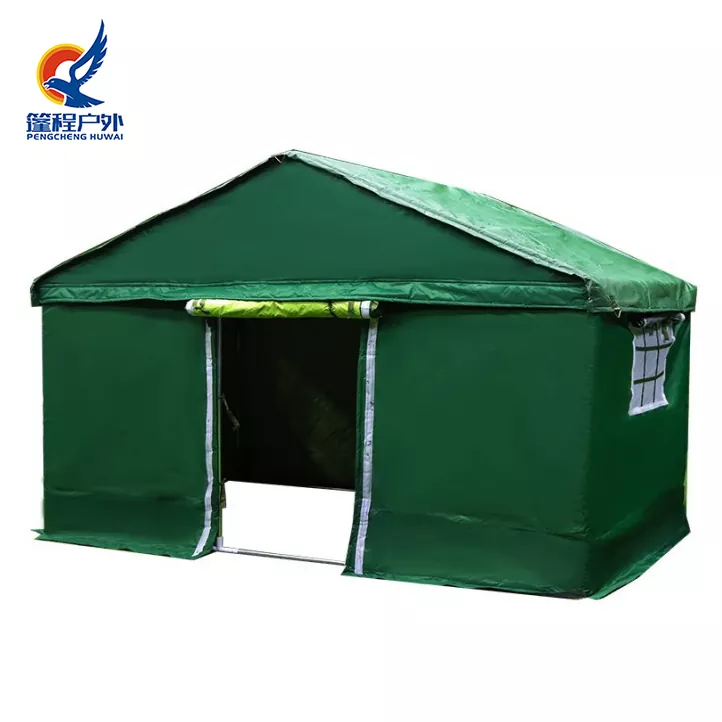

Among them, the 3×2m Construction Tent is commonly used as a small construction site duty room, temporary office or single/double occupancy unit, and is one of the most frequently used basic models in engineering sites.
|
Detailed parameter description of tent construction tent |
||||
|
Size |
Fabric |
Bracket |
Configure |
Bracket weight |
|
3*2(1 room) |
1*2 thick rubber plastic top 420 tapered oxford cloth 400 floral silk cotton High quality green oxford lining cloth |
The bracket pipe isφ32*1.2mm thick galvanized steel pipe The tee and four-way areφ32*1.2mn thick painted round tubes With Diliang |
One door and two windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
85kg |
|
3*4(2 room) |
One door and four windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
123kg |
||
|
5*4(2 room) |
Two doors and four windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
131kg |
||
|
5*6(3 room) |
Two doors and six windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
196kg |
||
|
5*8(4 room) |
Two doors and eight windows 2 pieces of cloth + front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
241kg |
||
|
5*10(5 room) |
Two doors and ten windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
287kg |
||
|
The workmanship, materials and parameters of these products can be customized according to customer requirements. |
||||
Stable Structure for Long-Term Use
The tent frame is made of Q235B carbon steel high-frequency welded pipes with hot-dip galvanizing treatment, effectively improving corrosion resistance. The overall structure can withstand wind speeds of ≥ Grade 8, making it suitable for open construction sites and field environments.Taking the 3×2m Construction Tent as an example, its compact structure ensures stability while minimizing floor space, facilitating centralized layout.
Waterproof rating ≥ 3000mm, capable of withstanding continuous rainfall
Double-layer structure design with built-in flame-retardant thermal insulation cotton
Operating temperature range: -30℃ to +50℃
Adopting a plug-in and bolt-fixed combined structure, a single tent can be erected by 4 people within 30 minutes. Both the tarpaulin and frame are standardized components, enabling easy replacement and maintenance in later stages.
Tents can be combined via passageways or parallel connection to form temporary dormitory areas, office zones or storage areas, meeting the needs of projects of different scales.
Pengcheng Outdoor construction tents are suitable for the following scenarios:
Construction sites (accommodation and duty rooms for construction workers)
Field exploration and geological surveys
Emergency rescue and post-disaster resettlement
Temporary stationed camps for flood control and emergency rescue
Military training and field support
In practical projects, the 3×2m Construction Tent is often used independently as a unit tent, and can also serve as a basic module in large-scale tent systems.
All tents are fully manufactured in Chinese factories, strictly complying with the ISO9001 quality management system:
Steel Structure: CNC pipe bending + hot-dip galvanizing technology
Tarpaulin: High-density Oxford cloth with double-sided PVC coating
Thermal Insulation Layer: Flame-retardant polyester needle-punched cotton, meeting Class B1 fire-retardant standard
Finished products are required to pass wind and rain tests, structural load-bearing tests and assembly inspections to ensure stable performance of ex-factory products in actual engineering environments.
Support bulk procurement of in-stock products
Support OEM/ODM customization
Adjustable dimensions, structures, materials and configurations based on projects
Provide long-term technical support and after-sales service
As a Chinese supplier with extensive experience in construction tent manufacturing, we focus more on the stability and maintainability of products in real application scenarios, ensuring that every tent meets the actual needs of engineering projects.
