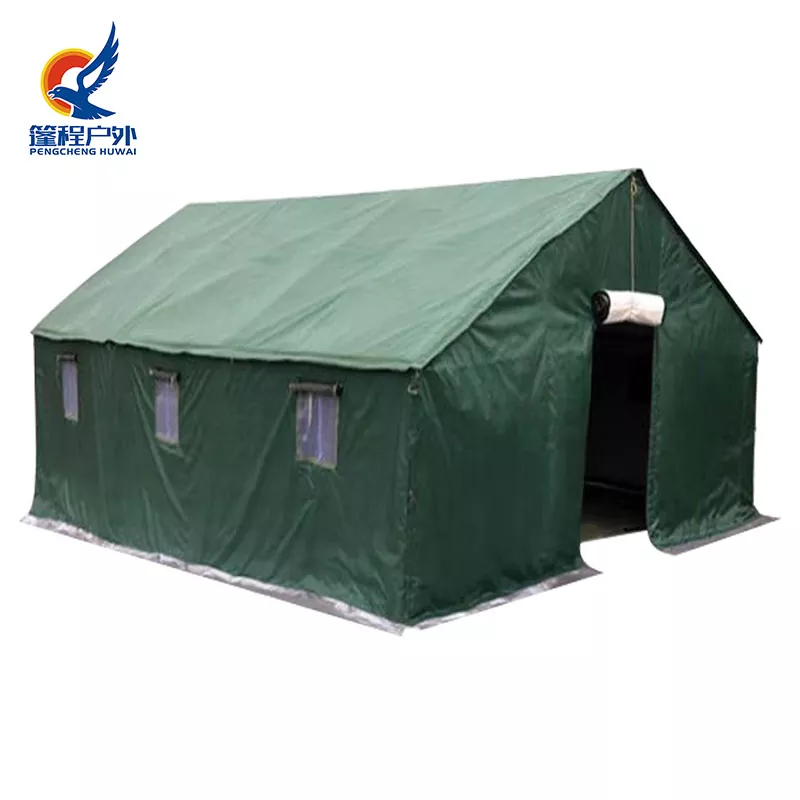

The 4.5×7.5m Construction Tent adopts a lengthwise extended proportional design, gaining more continuous internal space without significantly increasing the span. This structure is suitable for construction sites that require clear functional zoning but do not intend to use extra-large single tents.
In engineering camp planning, this size is often used for multi-person accommodation, strip-shaped office areas or equipment operation zones, facilitating internal flow management.
The strip-shaped space makes it easier to divide the tent into functional areas in practical use:
· Front and rear zoning for office and rest areas respectively
· Concentrated arrangement of beds or equipment on one side
· Preservation of a central passage to improve traffic efficiency
Compared with square or short-span tents, this layout is more suitable for work scenarios with frequent personnel access.
The structural design of the 4.5×7.5m Construction Tent emphasizes longitudinal stability and joint reliability:
· Main Frame : φ32×1.2mm galvanized steel pipes
· Connectors : Painted tee and four-way connectors
· Bottom System : Ground beam structure to distribute longitudinal stress
Through multi-point support and rational stress distribution, the tent maintains overall stability despite its extended length.
|
Detailed parameter description of tent construction tent |
||||
|
Size |
Fabric |
Bracket |
Configure |
Bracket weight |
|
3*2(1 room) |
1*2 thick rubber plastic top 420 tapered oxford cloth 400 floral silk cotton High quality green oxford lining cloth |
The bracket pipe isφ32*1.2mm thick galvanized steel pipe The tee and four-way areφ32*1.2mn thick painted round tubes With Diliang |
One door and two windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
85kg |
|
3*4(2 room) |
One door and four windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
123kg |
||
|
5*4(2 room) |
Two doors and four windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
131kg |
||
|
5*6(3 room) |
Two doors and six windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
196kg |
||
|
5*8(4 room) |
Two doors and eight windows 2 pieces of cloth + front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
241kg |
||
|
5*10(5 room) |
Two doors and ten windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
287kg |
||
|
The workmanship, materials and parameters of these products can be customized according to customer requirements. |
||||
A balanced design is adopted for environmental adaptability, targeting the characteristics of the long-span tent structure:
|
Item |
Indicator |
|
Wind Resistance |
≥ Grade 8 |
|
Waterproof Rating |
≥ 3000mm |
|
Operating Temperature Range |
-30℃ to +50℃ |
|
Flame-Retardant Rating |
Class B1 (thermal insulation layer) |
When used in windy or open areas, safety can be further enhanced by increasing the density of ground anchors, adding counterweights or arranging tents in series.
The tent adopts a multi-layer composite tarpaulin structure:
· Rubber-plastic composite waterproof roof cloth
· 420 coated Oxford cloth enclosure
· Flame-retardant polyester needle-punched cotton insulation layer
· Oxford cloth inner lining
This material combination achieves a balance between waterproofing, thermal insulation and wear resistance, making it suitable for medium-to-long-term projects.
The 4.5×7.5m Construction Tent is manufactured in our proprietary Chinese factories, strictly complying with the ISO9001 quality management system, and supports both spot supply and customized production.
Common deployment methods include:
· Standalone use of a single tent
· Combination with small-sized tents to form functional zones
· Parallel arrangement of multiple tents to form strip-shaped camp units
This specification is suitable for inclusion in the overall plan during the camp design phase to improve space organization efficiency.
