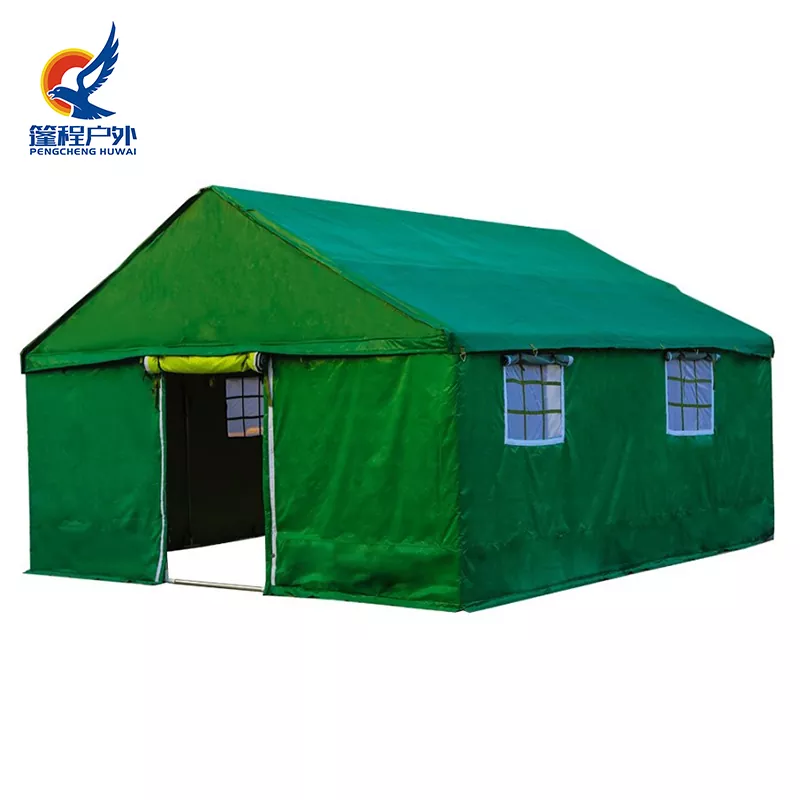

The 4×5m Construction Tent is a medium-to-large-sized construction tent with an internal area of approximately 20 square meters. It is suitable for multi-person centralized accommodation, temporary meetings, on-site offices or equipment storage. In engineering projects, this size is usually used as a functional tent, capable of meeting various on-site management needs beyond accommodation.
In practical applications, this tent model is often placed in the core area of construction camps, forming a zoned layout together with dormitory tents and storage tents to improve on-site management efficiency.

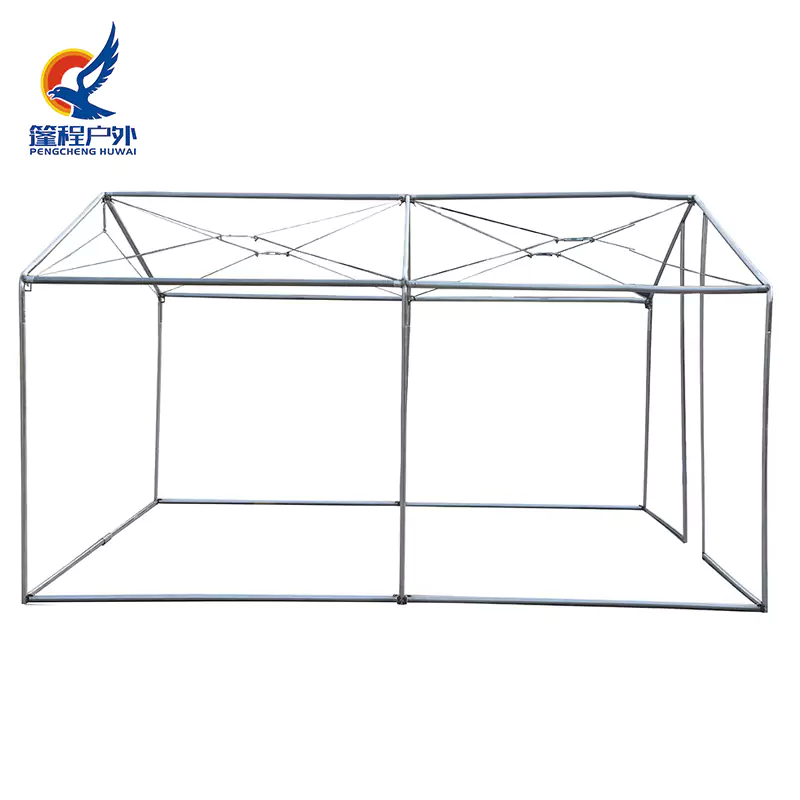

The 4×5m Construction Tent adopts a standardized steel structure frame, with its structural design focusing on balanced force distribution and overall stability, making it suitable for long-term fixed-site use.
Main support: φ32×1.2mm galvanized steel pipes
Connection structure: Painted tee and four-way connectors
Bottom system: Ground beam structure to enhance wind resistance and anti-displacement capacity
Through the combined arrangement of longitudinal and transverse supports, the tent maintains structural stability while expanding internal space, making it ideal for engineering projects requiring long continuous service cycles.
In terms of material configuration, this tent model prioritizes durability and environmental adaptability over a single lightweight design.
|
Part |
Material Description |
|
Roof |
Rubber-plastic composite waterproof roof cloth |
|
Peripheral Cloth |
420 coated Oxford cloth |
|
Thermal Insulation Layer |
Flame-retardant polyester needle-punched cotton |
|
Inner Lining |
Oxford cloth inner lining |
The above material combination achieves a balance between waterproofing, wind resistance and thermal insulation, adapting to ambient temperature changes ranging from -30℃ to +50℃.
The 4×5m Construction Tent has taken long-term use and on-site maintenance into consideration during the design phase:
· The tarpaulin can be disassembled independently for easy cleaning or replacement
· The steel structure surface is anti-corrosion treated to reduce maintenance frequency
· The doors and windows adopt a modular design, which can be adjusted according to usage requirements
When used in fixed camps, it can be further combined with ground anchors, sandbags or concrete weights to enhance overall stability.
|
Detailed parameter description of tent construction tent |
||||
|
Size |
Fabric |
Bracket |
Configure |
Bracket weight |
|
3*2(1 room) |
1*2 thick rubber plastic top 420 tapered oxford cloth 400 floral silk cotton High quality green oxford lining cloth |
The bracket pipe isφ32*1.2mm thick galvanized steel pipe The tee and four-way areφ32*1.2mn thick painted round tubes With Diliang |
One door and two windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
85kg |
|
3*4(2 room) |
One door and four windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
123kg |
||
|
5*4(2 room) |
Two doors and four windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
131kg |
||
|
5*6(3 room) |
Two doors and six windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
196kg |
||
|
5*8(4 room) |
Two doors and eight windows 2 pieces of cloth + front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
241kg |
||
|
5*10(5 room) |
Two doors and ten windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
287kg |
||
|
The workmanship, materials and parameters of these products can be customized according to customer requirements. |
||||
This tent model is suitable for the following project types:
· Medium-to-large infrastructure construction projects
· Field exploration and long-term stationed operations
· Flood control, disaster prevention emergency command and material management
· Temporary meeting rooms or on-site dispatch centers
In tent combination application schemes, the 4×5m Construction Tent usually serves as a functional core unit, complementing small-sized accommodation tents.
The product is manufactured in our proprietary Chinese factories, strictly complying with the ISO9001 quality management system. The production process covers steel pipe processing, tarpaulin compounding and finished product inspection, with structural stability and waterproof performance tests completed before delivery.
· Bulk spot supply
· Customization of dimensions and configurations
· OEM/project supporting production
The 4×5m Construction Tent is more suitable for engineering projects with clear functional planning and service cycles, facilitating unified deployment as part of the overall construction camp plan.
