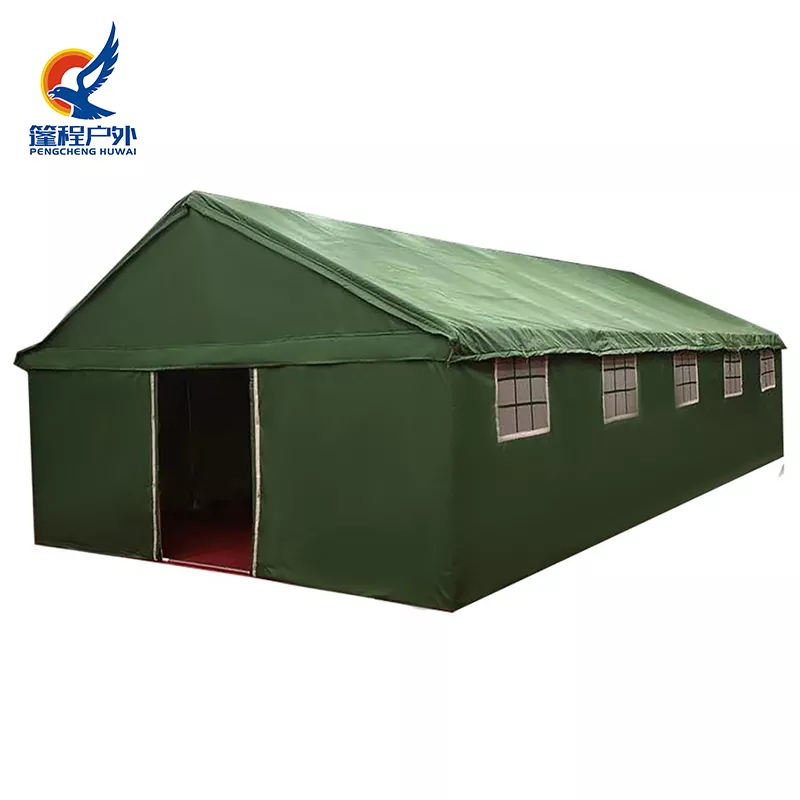

The 5×10m Construction Tent is a large-sized model in the construction tent series, mainly used to undertake centralized, public or management-oriented on-site functions. In engineering camp planning, this size is often deployed as an on-site command center, technical coordination hub, large dormitory or centralized material storage area. It reduces the management costs associated with the scattered arrangement of multiple small tents.
For projects with long construction periods and large personnel scales, this tent model helps create a stable and sustainable core space.
|
Detailed parameter description of tent construction tent |
||||
|
Size |
Fabric |
Bracket |
Configure |
Bracket weight |
|
3*2(1 room) |
1*2 thick rubber plastic top 420 tapered oxford cloth 400 floral silk cotton High quality green oxford lining cloth |
The bracket pipe isφ32*1.2mm thick galvanized steel pipe The tee and four-way areφ32*1.2mn thick painted round tubes With Diliang |
One door and two windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
85kg |
|
3*4(2 room) |
One door and four windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
123kg |
||
|
5*4(2 room) |
Two doors and four windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
131kg |
||
|
5*6(3 room) |
Two doors and six windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
196kg |
||
|
5*8(4 room) |
Two doors and eight windows 2 pieces of cloth + front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
241kg |
||
|
5*10(5 room) |
Two doors and ten windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
287kg |
||
|
The workmanship, materials and parameters of these products can be customized according to customer requirements. |
||||
Given its large span and area, the design of the 5×10m Construction Tent prioritizes structural safety and environmental adaptability, with the following core performance indicators:
· Wind Resistance : ≥ Grade 8
· Waterproof Rating : ≥ 3000mm
· Operating Temperature Range : -30℃ to +50℃
· Flame-Retardant Rating of Insulation Layer : Class B1
The above standards ensure the tent delivers stable performance under long-term outdoor conditions, making it suitable for complex construction environments.
This tent model adopts a multi-point support steel structure system to cope with the stress changes caused by the large internal space.
· Main Frame : φ32×1.2mm galvanized steel pipes
· Connectors : Painted tee and four-way connectors to enhance joint stability
· Bottom Structure : Integrated ground beam system for improved wind resistance and anti-displacement capacity
Through the rational layout of longitudinal and transverse supports, the tent maintains structural balance while maximizing internal space.
The standard configuration of the 5×10m Construction Tent includes two doors and ten windows , facilitating personnel evacuation, ventilation and natural lighting. The grid-patterned windows are equipped with independent curtains, allowing for easy zoned management based on different functional needs.
Common application scenarios include:
· Centralized multi-person accommodation and shift rest areas
· Project command and meeting venues
· Temporary storage for large equipment and materials
The internal space can be reconfigured according to different project phases to improve overall utilization efficiency.
Designed for long-term stationed engineering projects, this tent model takes full account of maintenance and service cycle requirements:
· The tarpaulin, insulation layer and steel structure can be replaced independently
· Galvanized treatment reduces the risk of steel corrosion
· The modular structure enables easy assembly, disassembly and relocation
When used in fixed camps, its safety can be further enhanced by adopting ground anchors, counterweights or foundation fixation methods.
The 5×10m Construction Tent is manufactured in our proprietary Chinese factories, strictly complying with the ISO9001 quality management system. The production process covers key steps including steel pipe processing, tarpaulin compounding and finished product inspection.
We support:
· Bulk spot supply
· Customization of dimensions, configurations and materials
· Project supporting and OEM production
This tent model is ideal for overall project procurement, facilitating unified deployment and long-term use.
