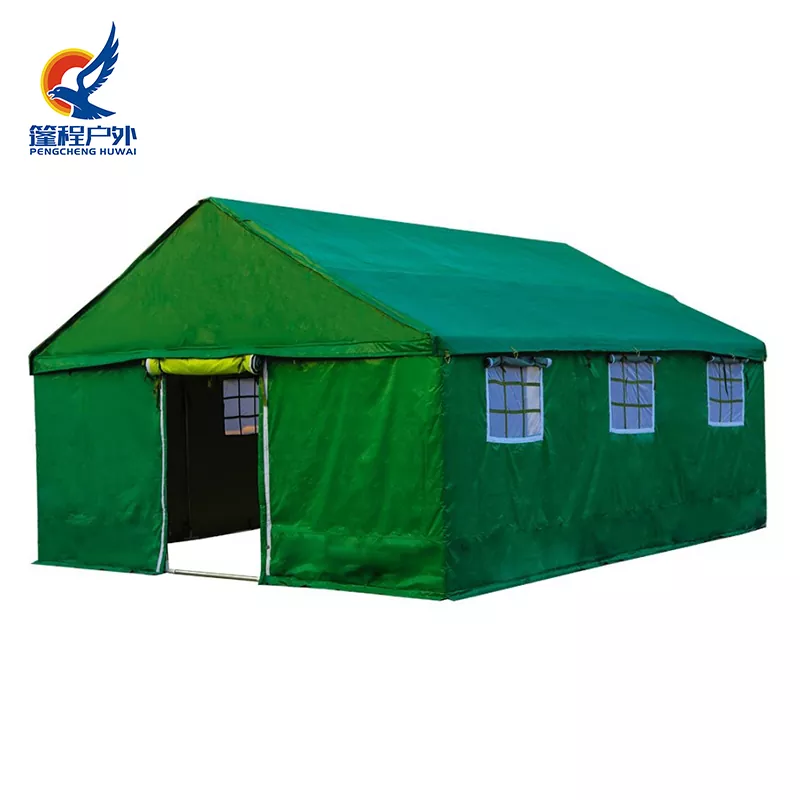

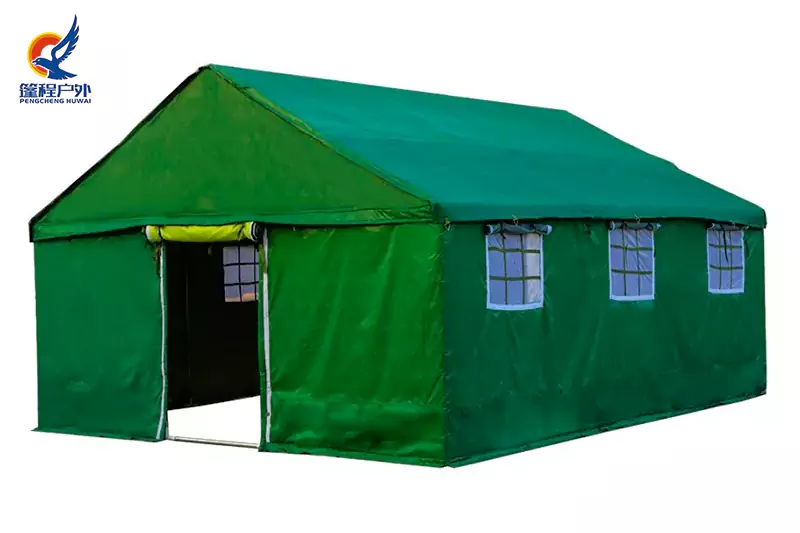

5×6m Construction Tent

Project-Driven Positioning

The 5×6m Construction Tent is typically applied in construction scenarios with high personnel concentration or composite functional requirements. In practical engineering projects, this size is more often used for multi-person accommodation, on-site command posts, material sorting areas or temporary technical offices, rather than for single-purpose lodging.

In camp planning, this tent model often serves as a public unit , undertaking multiple on-site functions to reduce the number of tents and improve overall space utilization efficiency.

Core Performance Indicators

To meet the stability requirements for use in large spaces, the following performance indicators were clearly defined for the 5×6m Construction Tent during the design phase:

·  Wind Resistance : ≥ Grade 8

·  Waterproof Rating : ≥ 3000mm

·  Operating Temperature Range : -30℃ to +50℃

·  Flame-Retardant Rating : The insulation layer meets Class B1 standard

The above indicators ensure the tent can be continuously used in construction environments with rain, snow, strong winds and large day-night temperature differences.

Load-Bearing Structure and Stability Logic

This tent model adopts a multi-point stress-bearing steel structure frame to reduce the risk of deformation caused by increased span.

·  Main Steel Pipes : φ32×1.2mm galvanized steel pipes

·  Connection Method : Painted tee and four-way connectors

·  Bottom Structure : Ground beam system to enhance overall stability

Through the rational distribution of longitudinal and transverse supports, the tent maintains structural balance while expanding internal area, making it suitable for long-term fixed or semi-fixed use.

Internal Organization and Usage Methods

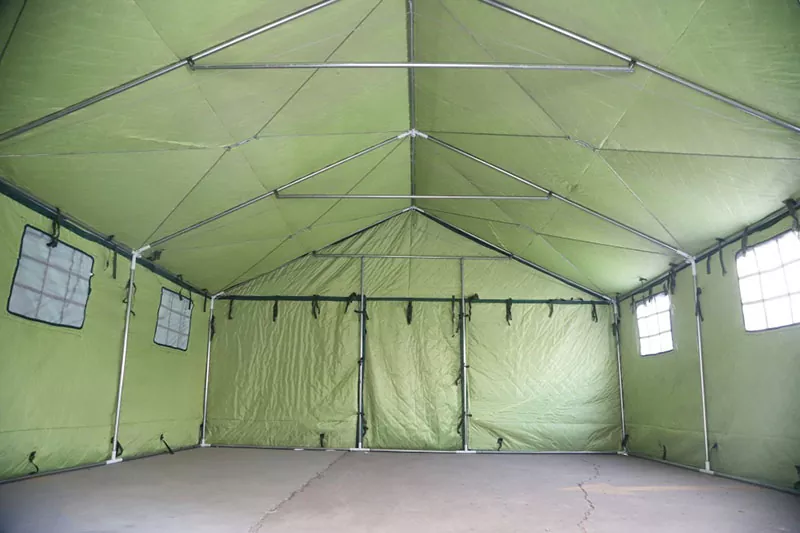

The standard configuration of the 5×6m Construction Tent includes two doors and six windows , facilitating personnel access, natural lighting and air circulation. The windows adopt a grid-patterned structure with independent curtains, enabling zoned management according to functional needs.

In practical use, common layout methods for this tent model include:

· Centralized multi-person accommodation (zoned beds)

· On-site meeting or dispatch areas

· Centralized storage of tools and materials

The large space endows the tent with higher usage flexibility.

Product Parameter / Specification

Material System and Environmental Adaptability

The tent tarpaulin adopts a multi-layer composite structure, balancing weather resistance and comfort.

This material system delivers stable performance in high-humidity, low-temperature or strong sunlight environments, reducing the need for frequent replacement and maintenance.

Service Life and Maintenance Considerations

For engineering projects with long service cycles, the 5×6m Construction Tent prioritizes maintenance convenience in its design:

· Tarpaulin and structural components can be replaced independently

· Galvanized steel pipes reduce the risk of corrosion

· Modular accessories facilitate on-site maintenance

In fixed camp conditions, the safety of use can be further improved by adding ground anchors, counterweights or foundation fixation methods.

Manufacturing and Supply Capacity

The product is manufactured in our proprietary Chinese factories, strictly complying with the ISO9001 quality management system. The production process covers key links such as steel pipe processing, tarpaulin compounding and finished product inspection, with structural and waterproof tests completed before delivery.

We support:

· Bulk spot supply

· Customization of dimensions, configurations and functions

· Project supporting and OEM production

The 5×6m Construction Tent is more suitable for overall procurement in medium-to-large engineering projects, facilitating integration into the unified planning and long-term use scheme of construction camps.
