The 5×8m Construction Tent is typically applied in construction sites with high personnel density or requiring centralized management. In engineering camps, this model is mostly used as multi-person dormitories, on-site management offices, technical coordination rooms or temporary material storage areas, and it is one of the common core tent specifications for medium-to-large-scale projects.
For systematic deployment, this model is often combined with small-sized accommodation tents to undertake public and management functions, reducing the number of temporary buildings.
This tent model adopts a systematic design concept in structure and configuration, emphasizing overall stability and continuous service capability.
· Frame System : φ32×1.2mm galvanized steel pipes, matched with painted tee and four-way connectors
· Bottom System : Integrated ground beam structure to enhance wind resistance and anti-displacement performance
· Enclosure System : Multi-layer composite structure consisting of roof cloth, enclosure cloth, thermal insulation layer and inner lining
Each system is independent yet collaborative, facilitating installation, disassembly and subsequent maintenance.
Targeting the large span and area, the 5×8m Construction Tent prioritizes structural safety and environmental adaptability in its design:
· Wind Resistance Rating : ≥ Grade 8
· Waterproof Rating : ≥ 3000mm
· Operating Temperature Range : -30℃ to +50℃
· Flame-Retardant Rating of Insulation Layer : Class B1
Through the cooperation of multi-point stress-bearing structure and ground beam system, the tent maintains structural stability in open sites or severe weather conditions.
|
Detailed parameter description of tent construction tent |
||||
|
Size |
Fabric |
Bracket |
Configure |
Bracket weight |
|
3*2(1 room) |
1*2 thick rubber plastic top 420 tapered oxford cloth 400 floral silk cotton High quality green oxford lining cloth |
The bracket pipe isφ32*1.2mm thick galvanized steel pipe The tee and four-way areφ32*1.2mn thick painted round tubes With Diliang |
One door and two windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
85kg |
|
3*4(2 room) |
One door and four windows 1 piece of cloth + 1 piece of door curtain The windows are made of nine-square grid and have independent curtains. |
123kg |
||
|
5*4(2 room) |
Two doors and four windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
131kg |
||
|
5*6(3 room) |
Two doors and six windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
196kg |
||
|
5*8(4 room) |
Two doors and eight windows 2 pieces of cloth + front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
241kg |
||
|
5*10(5 room) |
Two doors and ten windows 2 pieces of cloth* front and rear door curtains The windows are made of nine-square grid and have independent curtains. |
287kg |
||
|
The workmanship, materials and parameters of these products can be customized according to customer requirements. |
||||

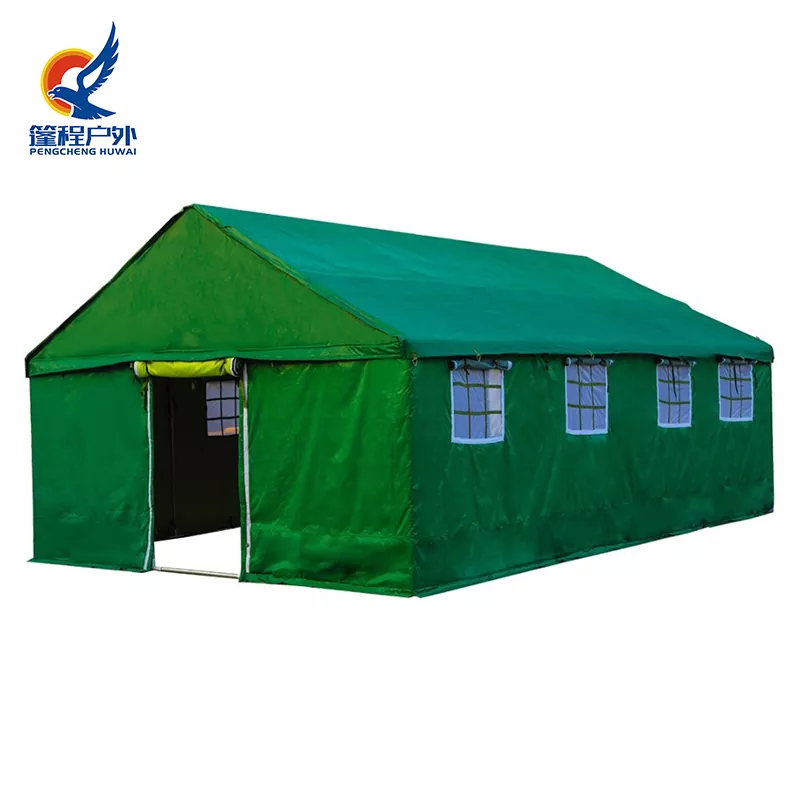

The standard configuration of the 5×8m Construction Tent includes two doors and eight windows , meeting the needs of personnel access, ventilation and lighting. The windows adopt a grid-patterned structure with independent curtains, facilitating zoned management of the space according to different functions.
Common usage methods include:
· Centralized multi-person accommodation (double-row or multi-row beds)
· On-site dispatch and management offices
· Centralized storage of equipment, tools and materials
The large internal space allows flexible layout adjustments to adapt to the usage requirements of different project phases.
In actual construction sites, the 5×8m Construction Tent is mostly used as a semi-fixed or fixed tent. In addition to the standard erection method, its stability can be further enhanced by the following measures:
· Fixation with ground anchors or sandbag counterweights
· Fixation after foundation hardening
· Corridor-type connection between tents
The modular component design enables separate replacement of tarpaulin and steel structures, reducing long-term usage costs.
The product is fully manufactured in our proprietary Chinese factories, strictly complying with the ISO9001 quality management system. The production process covers key links including steel structure processing, tarpaulin compounding, whole-tent inspection and factory packaging.
· Bulk spot supply
· Customization of dimensions, number of doors/windows and material configurations
· Project supporting and OEM production
The 5×8m Construction Tent is suitable for overall procurement in medium-to-large-scale engineering projects, facilitating integration into the unified planning and long-term usage scheme of construction camps.
